Vario L Support System
Vario L is a system for ventilated facades consisting entirely of extruded aluminium elements.
Vario L differs from existing solutions with the unique cladding material - aluminium lamella, the lamella in aluminium helps control the amount of sunlight acting on its surface.

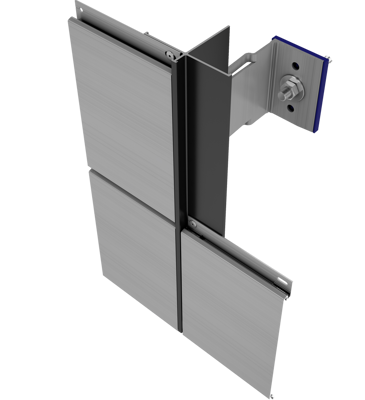

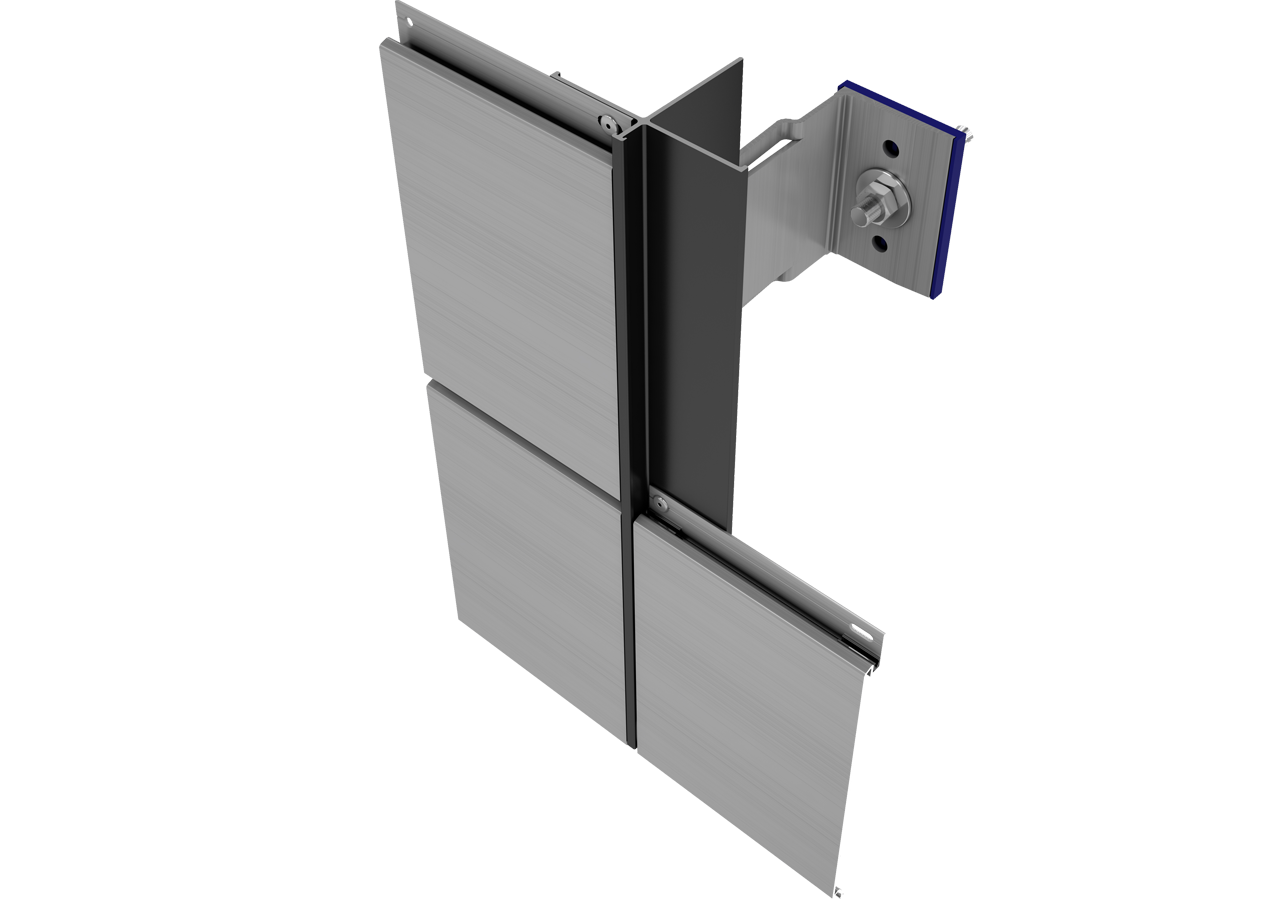

The system is designed with a unique profile that is fixed to the L-brackets and the lamella facade panels are then fixed directly to the profile.
The profiles can be coated to the same colour as the main façade, or coloured a differed colour to create a defined border around the panels.
The product ensures accurate fixed 8mm vertical gap by specially selected main vertical profile and 8mm horizontal negative gap, defined by the lamellas.
Low weight of juts 6kg/m2, facilitating the transportation, loading, unloading and installation.
Custom made sizes of lamellas allows the use of very long lamella, in case of severe loadings and provides excellent performance in terms of statistics.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Technical Characteristics
-
Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
