Floorspan Profiles
Floorspan profiles have been designed and engineered to support where there is a need to span between floors.

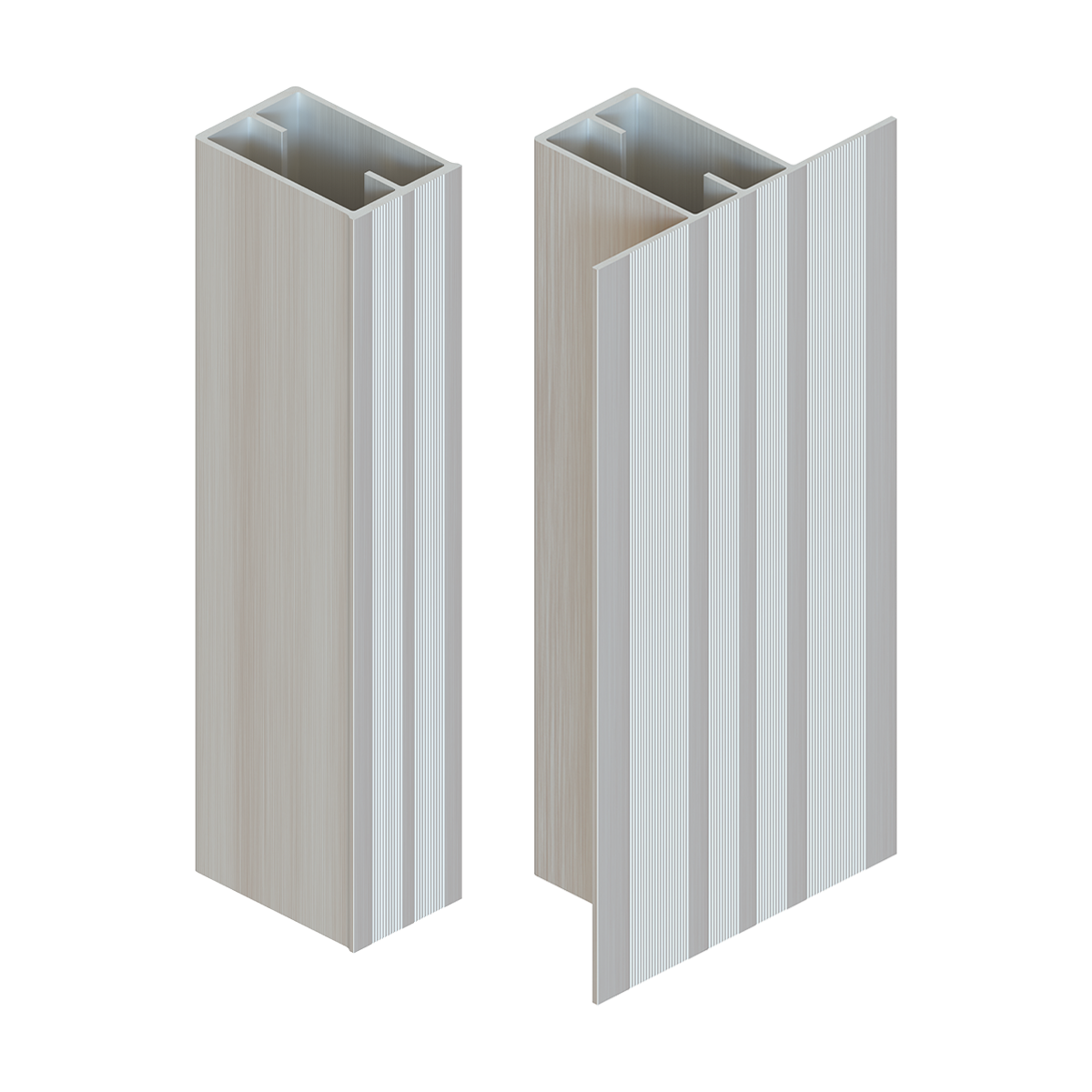

The profile geometry includes internal strengthening splines to reduce the depth of the section to 60mm, while enabling the technical characteristics to span, floor slab to floor slab.
The advantage of reduce depth enables the profile in most instances to remain outside the insulation, creating a greatly improved building U Value.
The floorspan design is often a useful design on refurbishment projects where the building substrate is variable. The system also lends itself to heavy weight facade materials - including natural stones with a typical thickness greater than 40mm and glass.

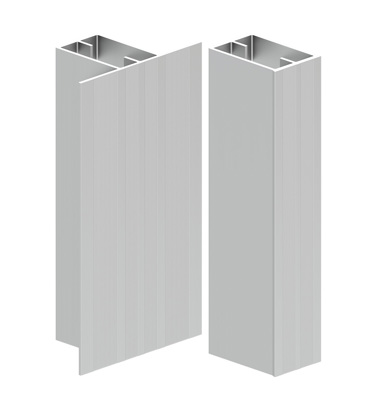

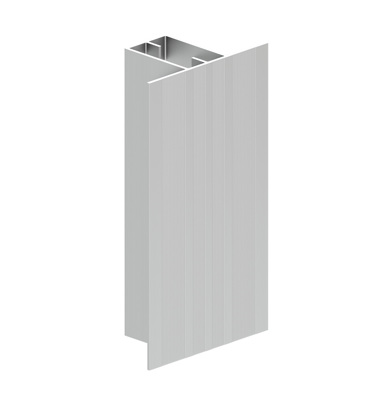

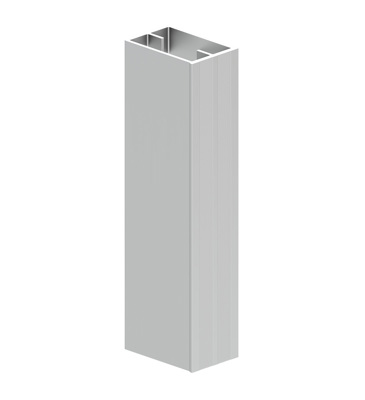

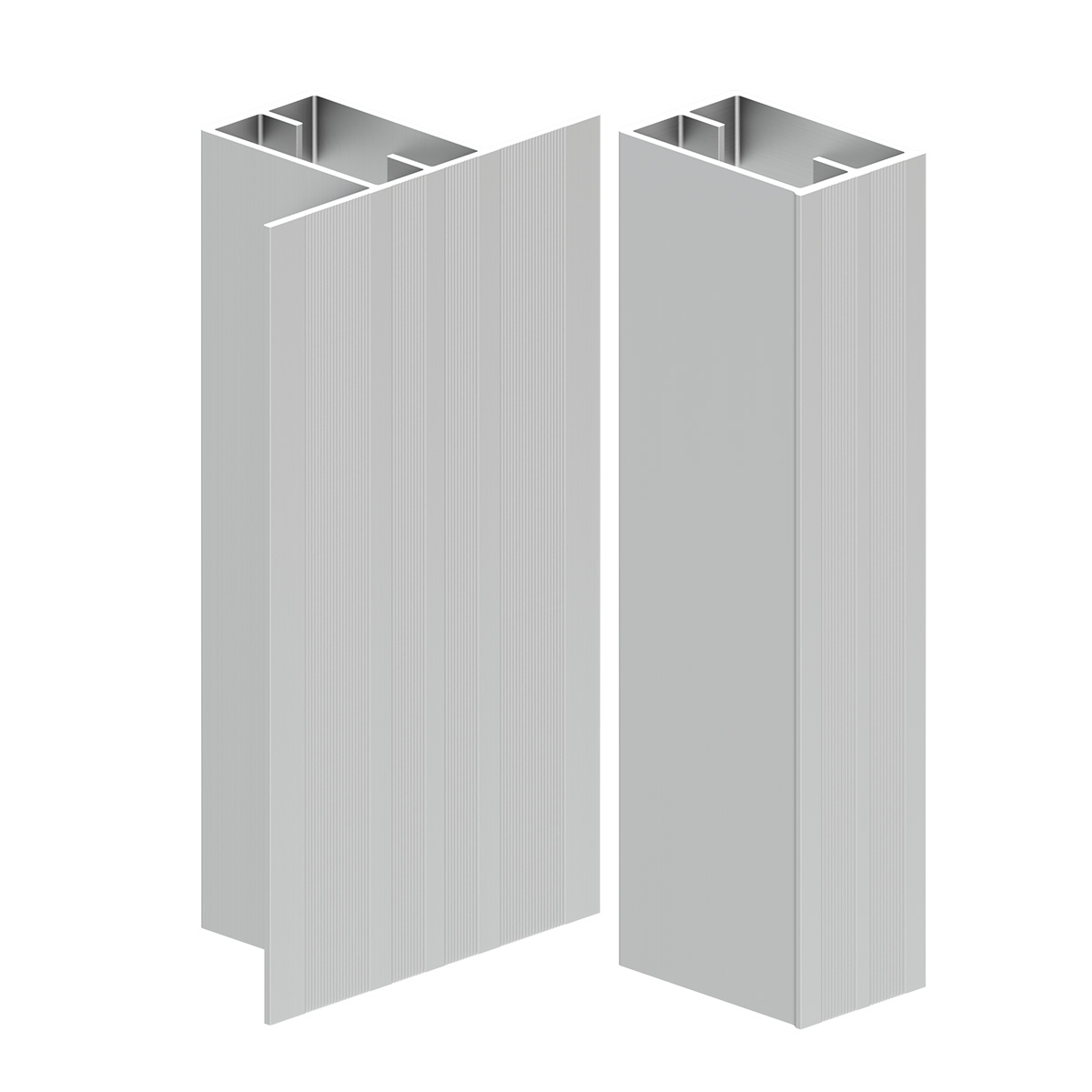

All sections are 38mm wide into the EVT II U bracket, with a 40mm face for the intermediate profile, and a T-profile of 110mm for either where the panels join, or to take clip systems.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Typical Facade Systems
-
Brickslip Support System for supporting brick facades.
Forte Support System for supporting stone facades up to 60kg
Forte-L Support System for supporting stone facades up to 40kg
Vario-L Support System to support aluminium lamella panels.
Vario-F Support System to support face fixed façade materials
Bravo-H Support System for aluminium tongue and groove cassette panels.
