Vario F Support System

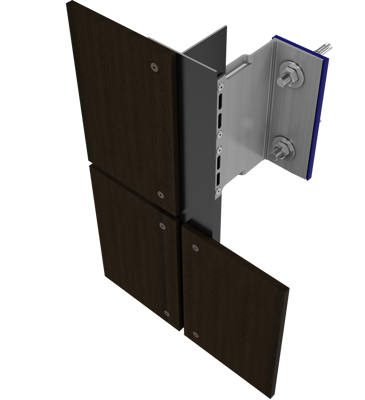

The system is suitable for visible mounting of thin and smooth materials using Rivets, or face fixings. Designed using vertical rails in a T & L geometry.
This is a common method for facade materials made from HPL, and fibre cement materials. Popular brand examples are Trespa, Eternit and Rockpanel.
Where the board are joined together, the 110mm and 80mm faced T rails, provides the correct dimensions to all the major board manufacturers specification, relating to surface area in contact with the panel, and movement joint between the abutting panels.
The panel joints can be used with various sizes of T-profile to create the desired shadow joint based on project requirements and can also be powder coated.
Depending on the material type, HPL / fibre cement panels require vertical support at 500mm to 600mm - for all vertical centre support generally use the 60x40 L-profile.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Technical Characteristics
-
Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
