Structural C-Profiles
Designed specifically for fixing to SFS studs, to support EVT and EVT II helping hand brackets, where the vertical profile position is out of alignment with the SFS stud.
The C-profile when compared to the tophat, removes the requirement to notch insulation and therefore has a reduced impact on the thermal bridging.
Designed to support light to medium weight facades. For heavy weight facades, if the C-profile is at capacity, use the structural tophat design.
C-profiles are designed with a material thickness of 3mm in fixing locations for improved performance, while also taking some of the additional weight away from other areas, assisting in the overall cost of the C-profile.

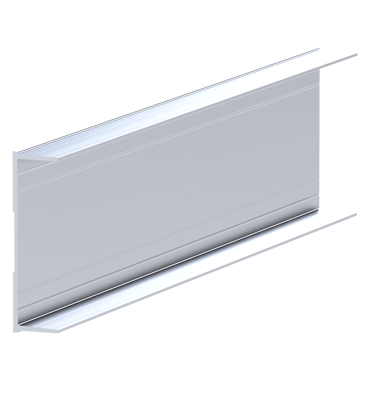

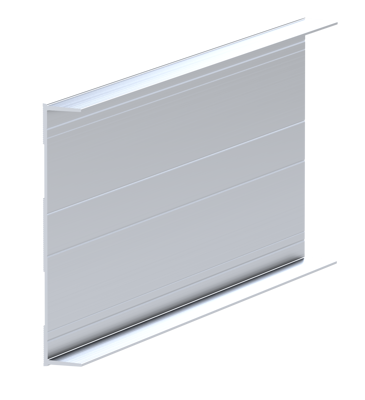

Fixed point holder channel has increased legs for stiffness to support the majority of facades types based on standard UK wind loads.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Technical Characteristics
-

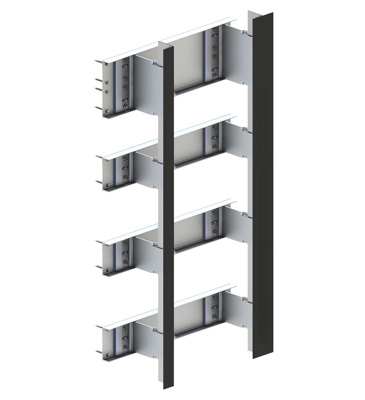

Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
- Typical Façade Systems
-
Brickslip Support System for supporting brick facades.
Forte Support System for supporting stone facades up to 60kg
Forte-L Support System for supporting stone facades up to 40kg
Vario-L Support System to support aluminium lamella panels.
Vario-F Support System to support face fixed façade materials
Bravo-H Support System for aluminium tongue and groove cassette panels.
