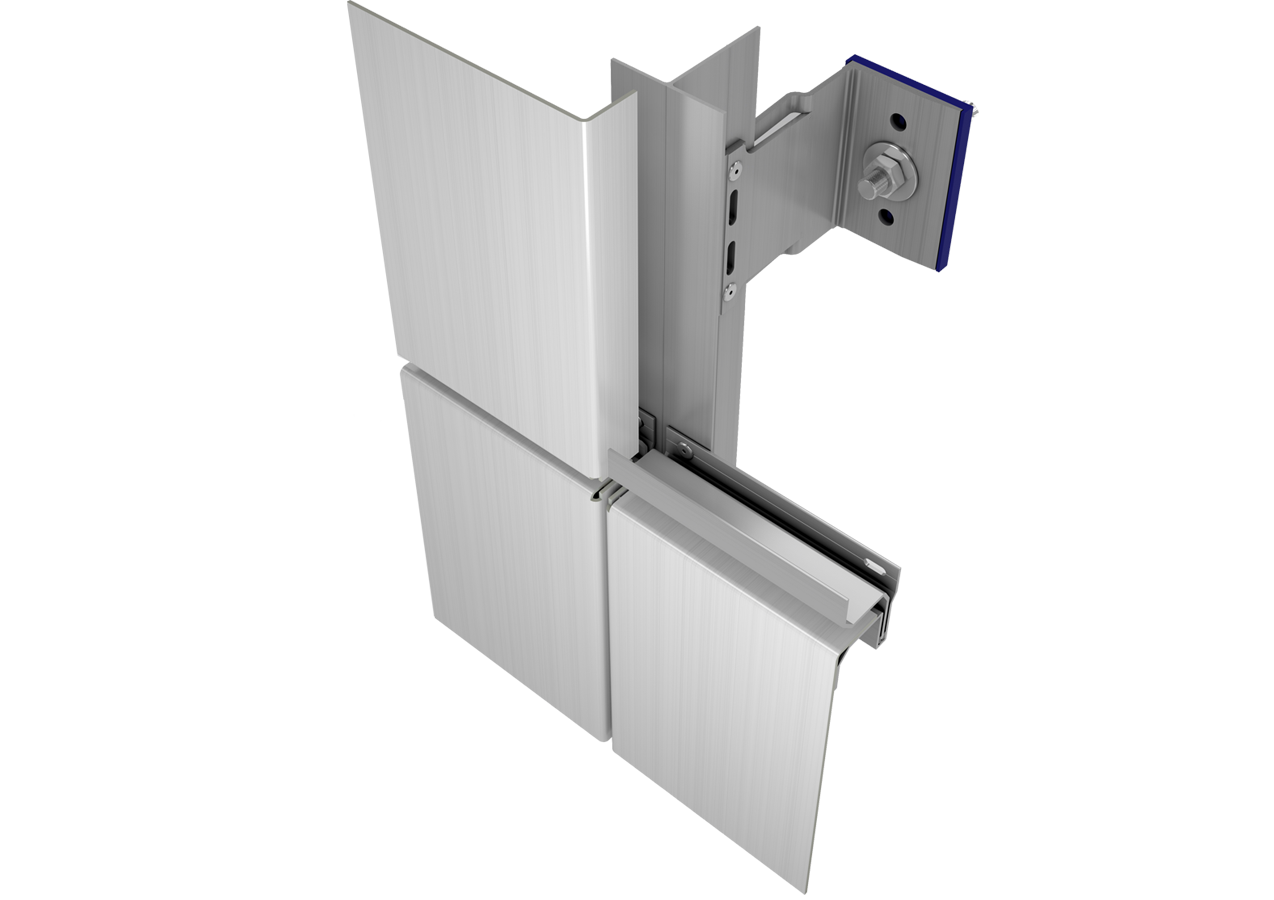

Bravo-H Support System
The Bravo-H system is designed for installation of composite materials and metal sheets, by using the easiest and simple cladding principle (tongue and groove).
The system consists of 2 horizontal profiles, a rail profile that is fixed back to the subgrid with the second profile fixed to the back of the panel to allow the façade to lock into the subgrid creating the tongue and groove joint.
Horizontal profiles installed on the top and the bottom of each panel give additional strength and reinforcement to the façade.
There are additional accessories available for anti-rattle between the profiles. The vertical and horizontal shadow joints of the panel can be 4mm minimum and 21mm maximum.
The system is designed for aluminium and composite materials to provide a support system for invisible fix cassette panels, using rivet connections, primarily suitable for horizontal orientated large span cassettes.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Technical Characteristics
-
Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
