EVT II Soffit Brackets Aluminium

Concrete/Steel combined base
Vertical application
Wide range materials

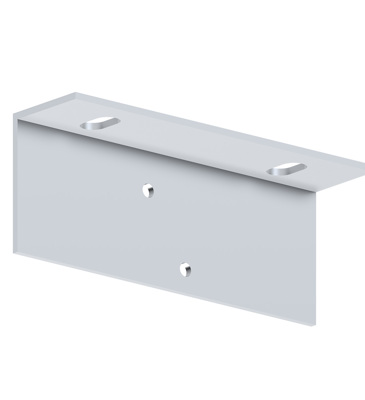

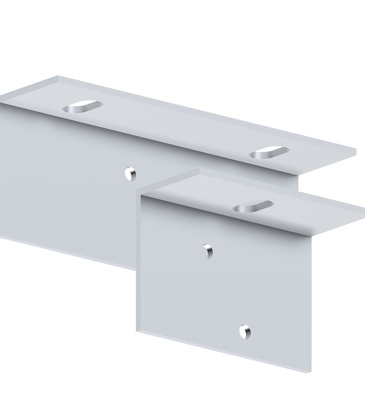

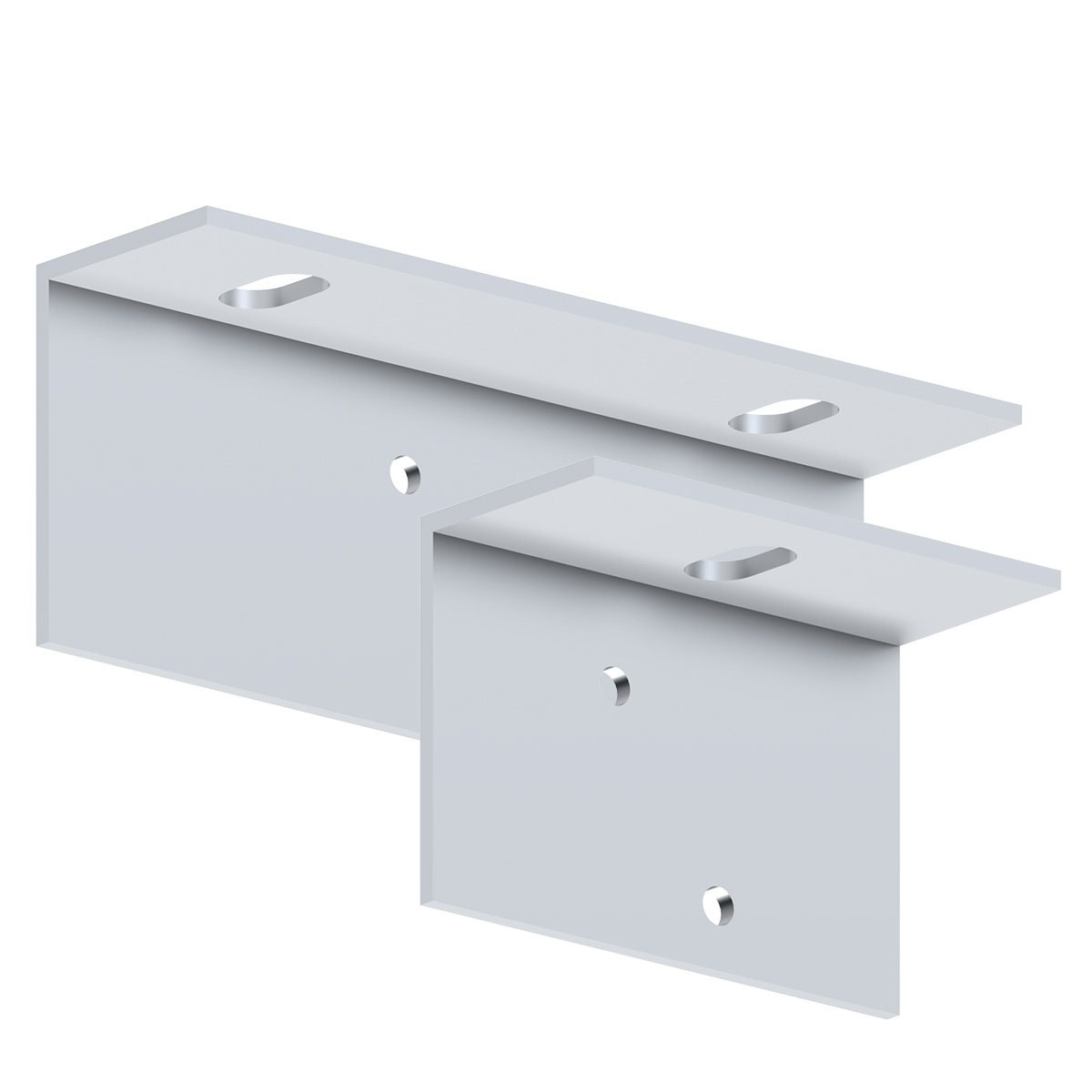

Designed as a single component, the extruded L-brackets have slots for fixing brackets to concrete, and holes for assembling the aluminium components.

The brackets are constructed out of 2mm or 3mm extruded aluminium, this allows the design to be tailored to the building substrate and the panel characteristics. Typical designs will use the .

Aluminium brackets for rainscreen are designed in accordance with BS EN 1090-3:2008 and / or Euro code 9 – Part 1.

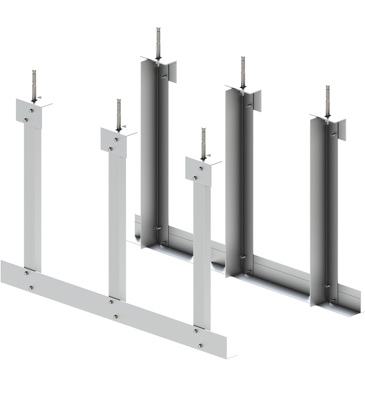

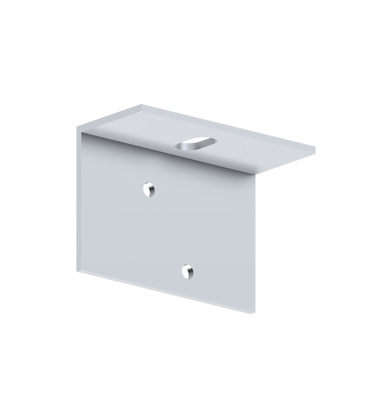

Typical bracket configuration uses the single bracket version in 3mm aluminium thickness in all positions vertical rail to support the façade.

The brackets base has fixing slots suitable for concrete, it also includes holes for simple connection to the L profile used to create the cavity zone.

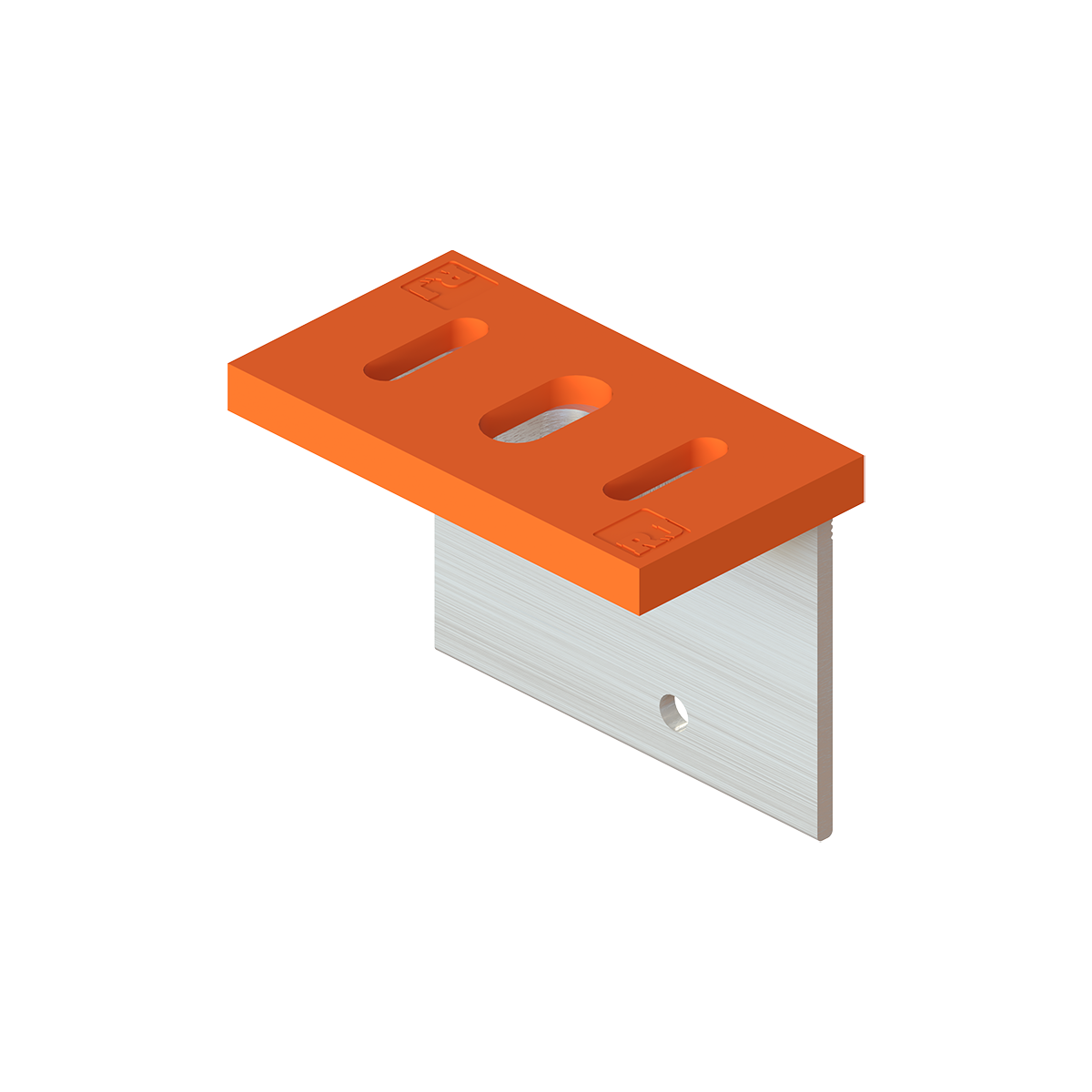

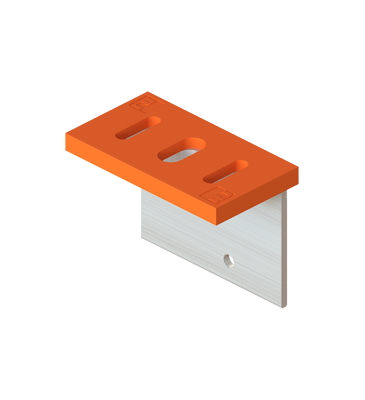

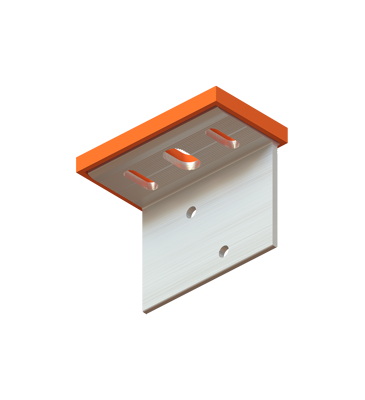

Brackets are available with various thermal pad options to improve overall thermal performance.

Bracket and profile configuration is specified by RJ Facades technical department. To submit your project specifics please go to Facade Designer.

Read more Enquire Now
  • Downloads
  • Approvals
  • UL Winmark Approval (UKAS Product Certification)

    The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.

    The Approval Covers

    A detailed overview of the certified products

    Technical specification of the products

    An initial assessment of the certified company's factory production control systems.

    Design considerations

    A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.

    An assessment of the certified products contribution to any key requirement of the building regulations.

    An overview of the certified companies product installation requirements and procedures.

    An overview of all supporting test documentation used for the product evaluation.

    Ongoing surveillance of the certified company's factory production control system and procedures.

    The conditions under which this product certification is valid.
