EVT II Horizontal Adaptor
EVT II Horizontal Adaptors brackets are designed in a vertical direction to enable simple fixing to the SFS stud.
UL (Winmark, UKAS accreditation) approved facade systems, approval recognised by the NHBC.

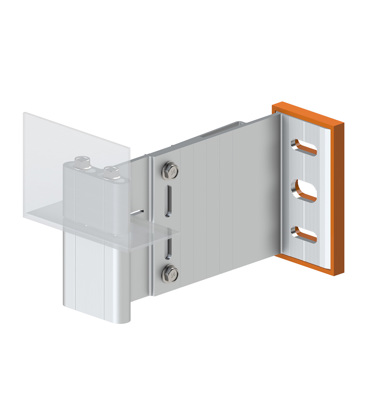

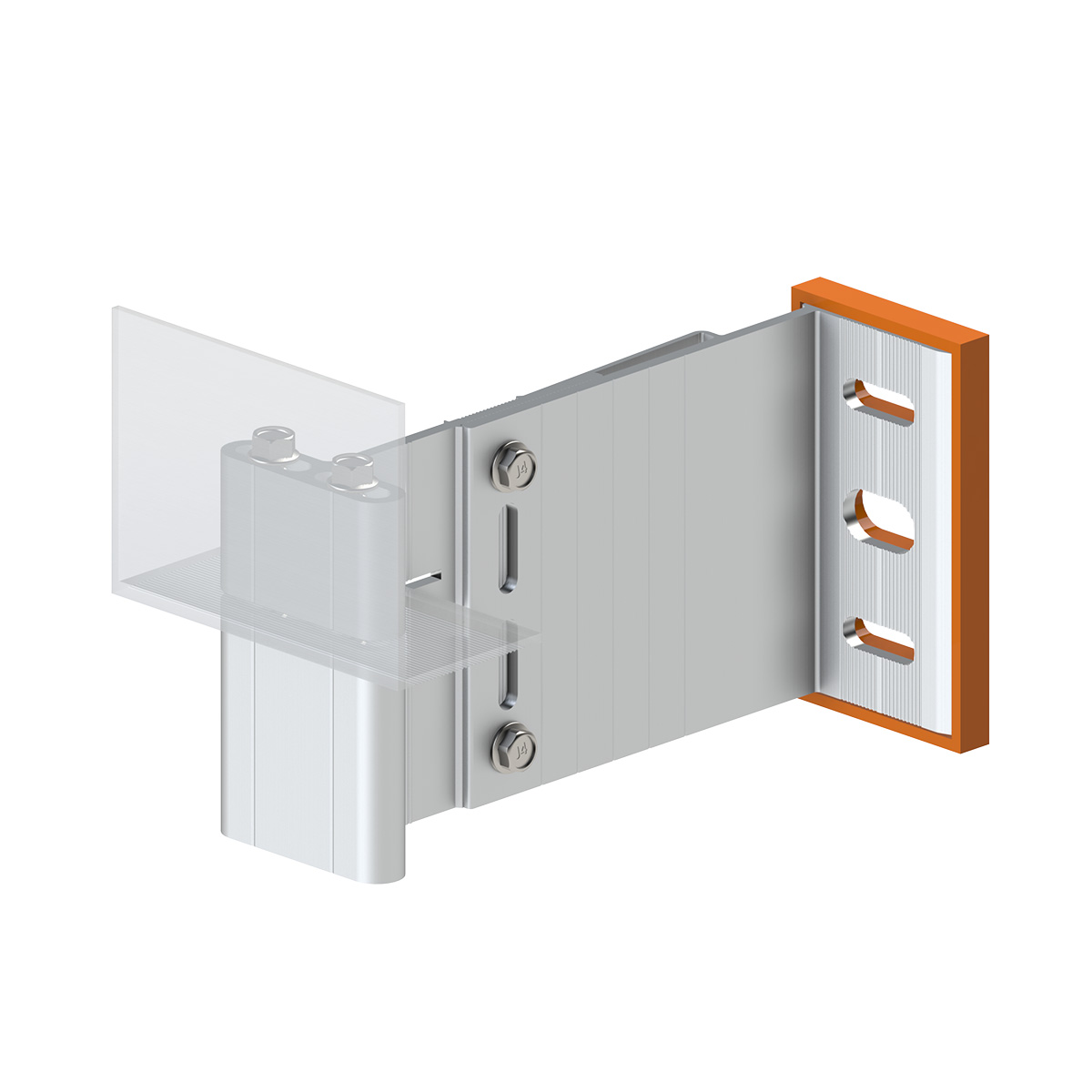

The adaptor piece is designed to be fixed to a single EVT II bracket, for simple conversion of the support profile from vertical to horizontal position. Horizontal brackets are the best solution for to support T and L profiles in the horizontal plain for vertical plank systems and feature band details.
The adaptor uses the features of the EVT II bracket range for multi-substrate application.
Brackets are available with various thermal pad options to improve overall thermal performance.
- Downloads
-
- Approvals
-
UL Winmark Approval (UKAS Product Certification)
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
The Approval Covers
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
Design considerations
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
- Technical Characteristics
-
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
- Typical Facade Systems
-
Vertical ‘Cedral’ Weatherboard system
Vertical aluminium plank panels
Feature bands
