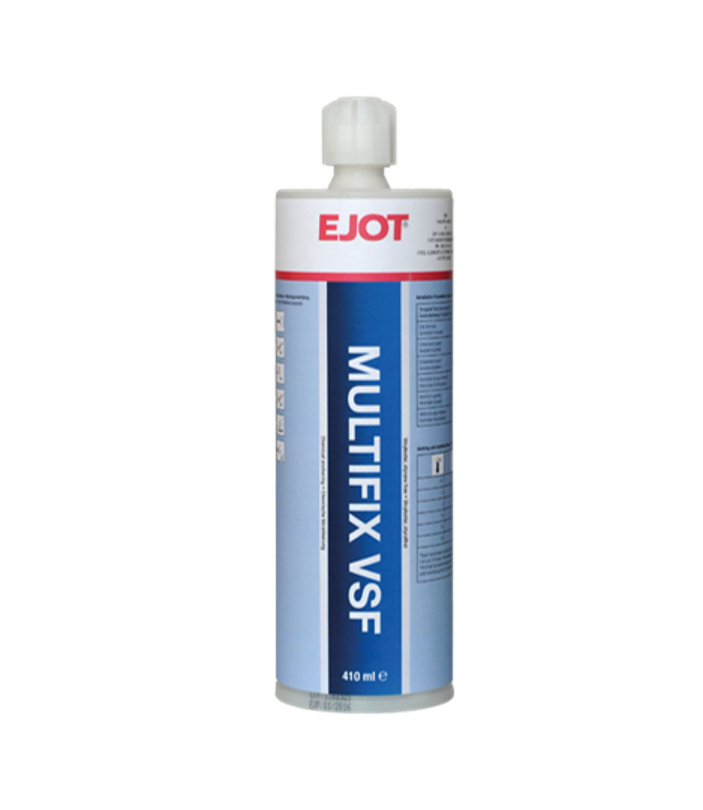

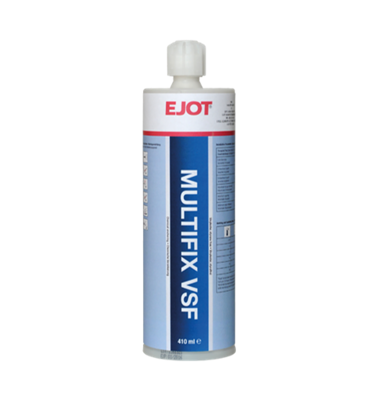

EJOT Multifix VSF Vinylester Resin
EJOT Multifix VSF styrene free low-odour anchor mortar is a two-compound chemical anchoring system based on a 'high reactivity' vinylester resin.
Fast gelling and curing for cracked and non-cracked concrete, approved for fixings in perforated brick, solid brick, concrete, and aerated concrete.
Used for elevated temperatures, temperature ranges I, II and III.
The injection mortar system also benefits from approved system components such as anchor rods, anchors with internal threads, and injection anchor sleeves for fixings in concrete, aerated concrete, and masonry in both internal and external areas.
Suitable for underwater applications the Multifix VSF is also used with the approved system components for rebar connections, the remedial wall tie VBS 8, and the Thermax stand-off insulation system.
Approval for threaded rods M8, M10, M12, M16, M20 and M24, approval for rebar Ø 8, 10, 12, 14, 16, 20, 25mm
- Downloads
-
- Approvals
-
ETA-15/0282 Cracked concrete C20/25
Fire Rated R240
A+ rating VOC Cobntent - Emissions Dans Lair Interieur
- Technical Characteristics
-
Advantages
High-performance for fixing of high and critical loads
High durability for a broad range of applications on building sites
Styrene free with a low odour.
ideal for indoor and outdoor applications.
Suitable for underwater applications and for use with potable water
Dynamic resistance with fast curing.
Fire rated.
Types of Materials
Concrete, Solid brick, Solid stone, Solid block, Aerated concrete
Main Uses
Steel constructions - Railings - Consoles - Ladders - Machines Cable trays - Gates - Facades - High racks - Canopies - Stand-off installations
- Building Materials
-
Building materials
Approved for:Concrete C20/25 cracked and non-cracked
Approval for threaded rods M8, M10, M12, M16, M20 and M24,
Approval for rebar Ø 8, 10, 12, 14, 16, 20, 25mm
Also suitable for:
Rebar connections
