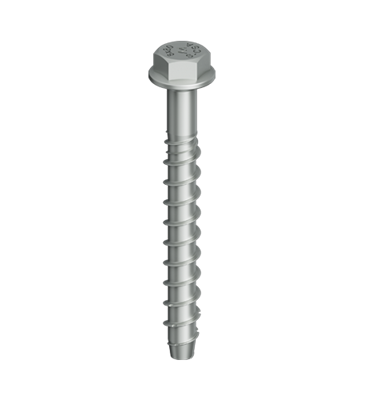

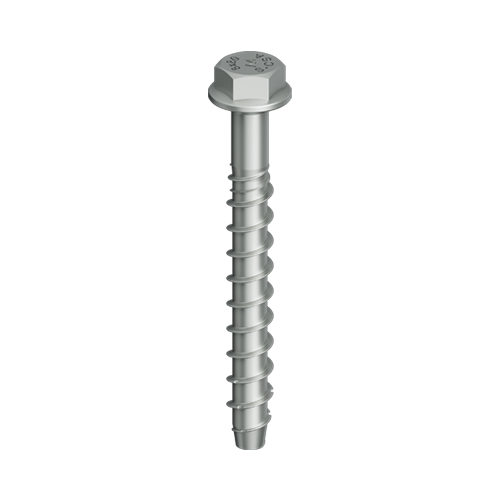

EJOT JC6-KB Stainless Steel Concrete Screw
EJOT JC6-KB fixing is an A4 stainless streel bi-metallic concrete screw, the fixing comes with a hex head and is available from 6m up to 12mm variants.
The concrete screw comes with superior corrosion resistance in environmental classifications C1 up to C4, which makes it perfect for coastal/marine environments.
ETA option for cracked and non-cracked concrete. Typical applications include fixing EVT helping hand brackets back to concrete.
The fixing comes with 'anti back-out' serrations. These serrations form part of the underheard design to provide much greater grip into metal fixture materials such as aluminium.
For extra fixture grip and a gold marking highlights uniquely welded threads as a bi-metallic indicator.
- Downloads
-
- Approvals
-
Cracked Concrete ETAG-001-1* Ø 8 - 12mm
Cracked Concrete ETAG-001-6* Ø 6 - 8mm
Non-cracked Concrete Ø 6 - 12mm
EAD 330747-00-0601 Option 1 (Part 6)
EAD 330232-00-0601 Option 1
ZAG -National Building and Civil Engineering Institute, Slovenia
R120 Fire Resistance
- Technical Characteristics
-
Advantages
JC6-KB offers maximum load-bearing capacity in non-cracked concrete
Hex head concrete screw with superior corrosion resistance in environmental classifications C1 up to C4
Anti break-out serrations for extra fixture grip and minimal expansion forces.
Hardened carbon steel lead threads with gold mark bi metallic indicator.
Types of Materials
Non-cracked concrete C20/25 to C50/60, Concrete C12/15, Natural stone with dense structureMain Uses
Steel constructions - Railings - Ladders - Machines - Staircases - Gates – Facades - Building Materials
-
Building materials
Approved for:Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
Concrete C12/15Concrete C80/95 (classification available)
