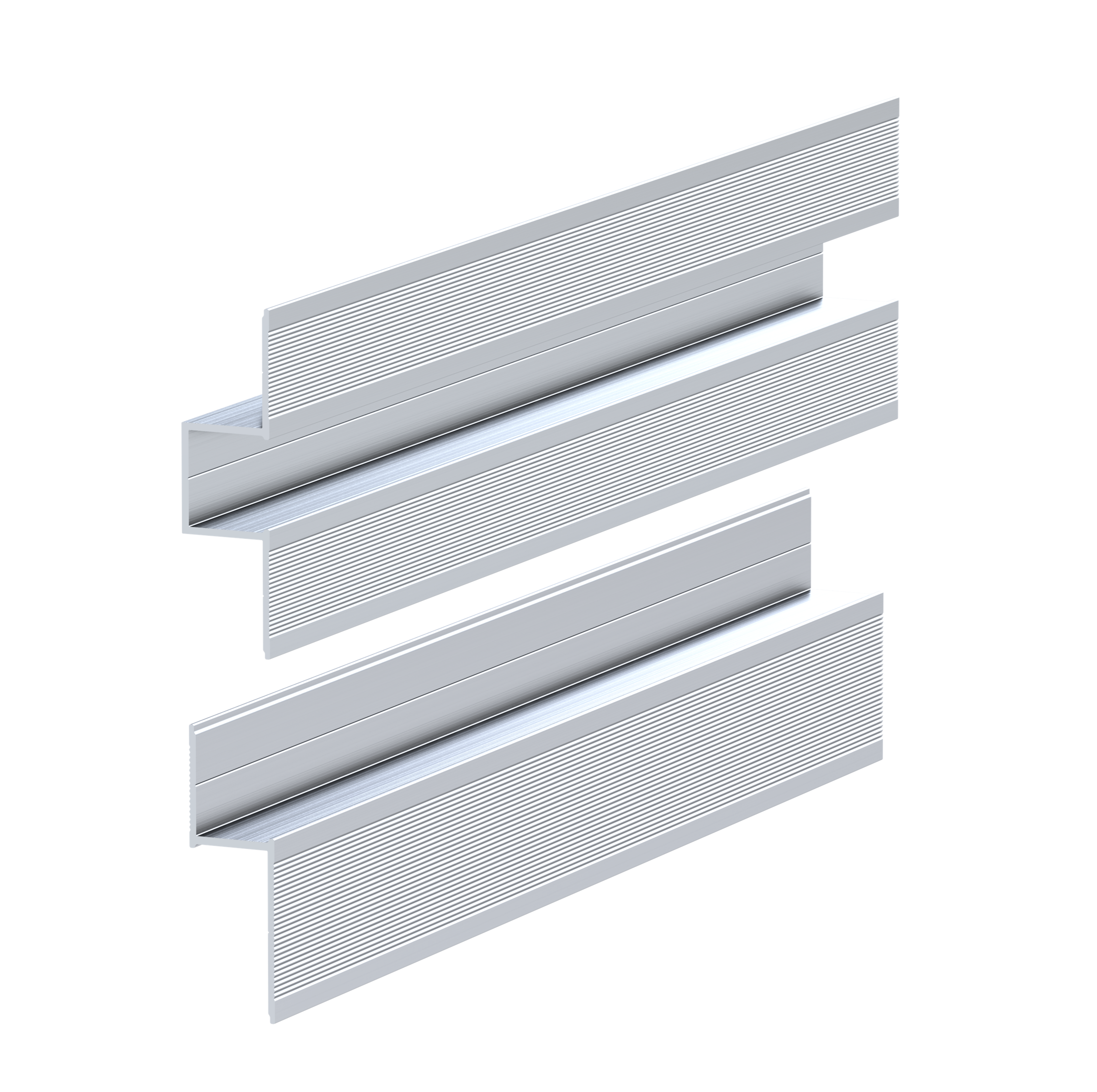

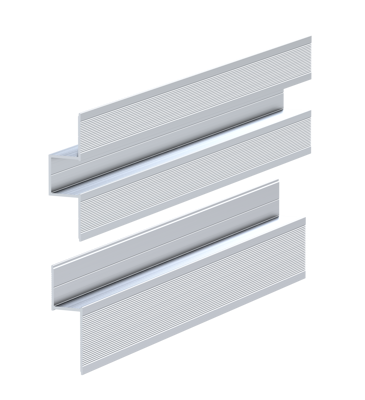

Zed and Hat Profiles

Vertical application
Floor to floor
Heavy materials

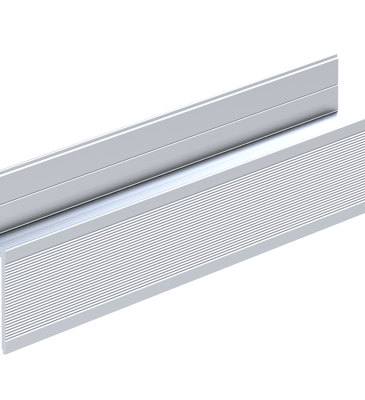

The Zed and Hat profiles are used for face fixed systems where the cladding zone is less than 50mm.

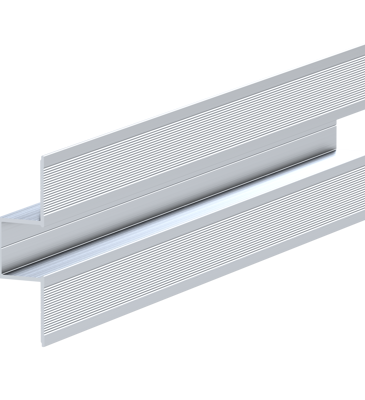

The hat profiles are often used at panel joint locations with the zed profiles being used in intermediate locations and at corner junctions.

The zed and hat profiles can also be used to support two-layer horizontal to vertical systems, the zed and hat profiles would be fixed back to the vertical profiles horizontally to allow fix points for vertical rainscreen panels.

Bracket and profile configuration is specified by RJ Facades technical department. To submit your project specifics please go to Facade Designer.

Read more Enquire Now
  • Downloads
  • Approvals
  • UL Winmark Approval (UKAS Product Certification)

    The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.

    The Approval Covers

    A detailed overview of the certified products

    Technical specification of the products

    An initial assessment of the certified company's factory production control systems.

    Design considerations

    A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.

    An assessment of the certified products contribution to any key requirement of the building regulations.

    An overview of the certified companies product installation requirements and procedures.

    An overview of all supporting test documentation used for the product evaluation.

    Ongoing surveillance of the certified company's factory production control system and procedures.

    The conditions under which this product certification is valid.
