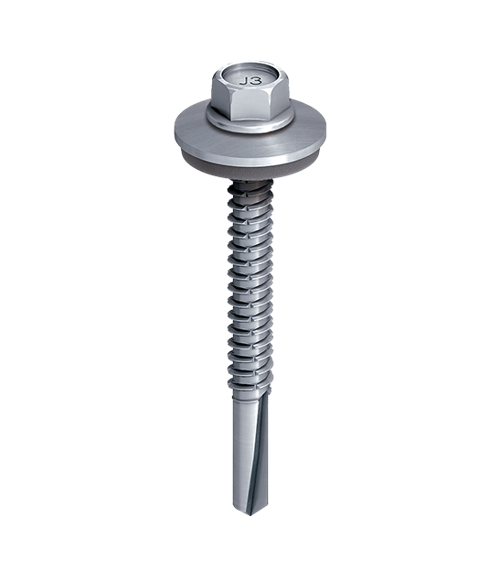

JT3-12 Stainless Steel 304 (A2) Tek Screws
EJOT JT3-12 fasteners are manufactured from 304 (A2) grade austenitic stainless steel with a hardened carbon steel drill point welded to the stainless steel shank.
The hardened drill point enables the screw to drill carbon steel sections and by having the lead threads formed on this hardened point this allows for correct tapping at high drilling speed.
Where fixing brackets to hot rolled steel sections we recommend they are used with the S16, S19 or A15 vulcanised sealing washer ensuring a safe seal every time.
Subject to design approval we typically recommend using the JT3-12-5.5x67 when fixing EVT helping hand brackets, tophats and C-profiles into hot rolled steel.
These fasteners are zinc coated for aesthetic reasons and waxed to lubricate the surface during installation.
The fixing can fix into steel structures 4.0-12.0mm in thickness.
RJ offer a complete range of Ejot stainless steel fasteners for other external applications.
- Downloads
-
- Approvals
-
European Technical Approval ETA-10/0200
- Technical Characteristics
-
Head Type
8mm Hex HeadMaterial
A2 Austenitic Stainless Steel fastener with Carbon steel drill pointWasher
S16 Stainless/EPDM Vulcanised Washer,
S19 Stainless/EPDM Vulcanised Washer,
A29 Aluminium/EPDM Vulcanised WasherTechnical specifications
Drive: 8mm clip hex one piece socket
Steel sections from 4.0 to 12.0mm in thickness - Application
-
Use for assembling EVT Helping Hand brackets, Aluminium Tophats and Channels to hot rolled steel sections up to 12.0mm. The clamping range varies depending on the fixing WITH or WITHOUT an EPDM washer.
