Tubs Hill | Sevenoaks

Tubs Hill is a redevelopment of an existing iconic site in Sevenoaks, into 91 luxury apartments covering 9 floors. The project entailed replacement of the original façade with new contemporary cladding to give it a new look and feel. The project also consists of a hotel style foyer with offices and a private business lounge. The façade surface area on the project was 4,500m2 of a vertical hung corium Brick slip system, the density of the cladding panel was 68kg/m2 supported by the RJ Facades EVT system using Ejot Tek screws as part of the package.

Facade Surface

4,500 m2

Height of building

9 Floors

Facade Material

Corium

Object data

  • Residential development
  • Height of the building: 9 floors

Details / Specials

  • Façade surface 4,500 m²
  • Vertical hung Corium Brick Slip system
  • Density of the cladding panel 68 Kg/m²
  • Maximal wind load considered 1760 N/m²
  • RJ Facades EVT subframe system
  • Building Substructure Metsec 1.2mm, using Ejot Teks

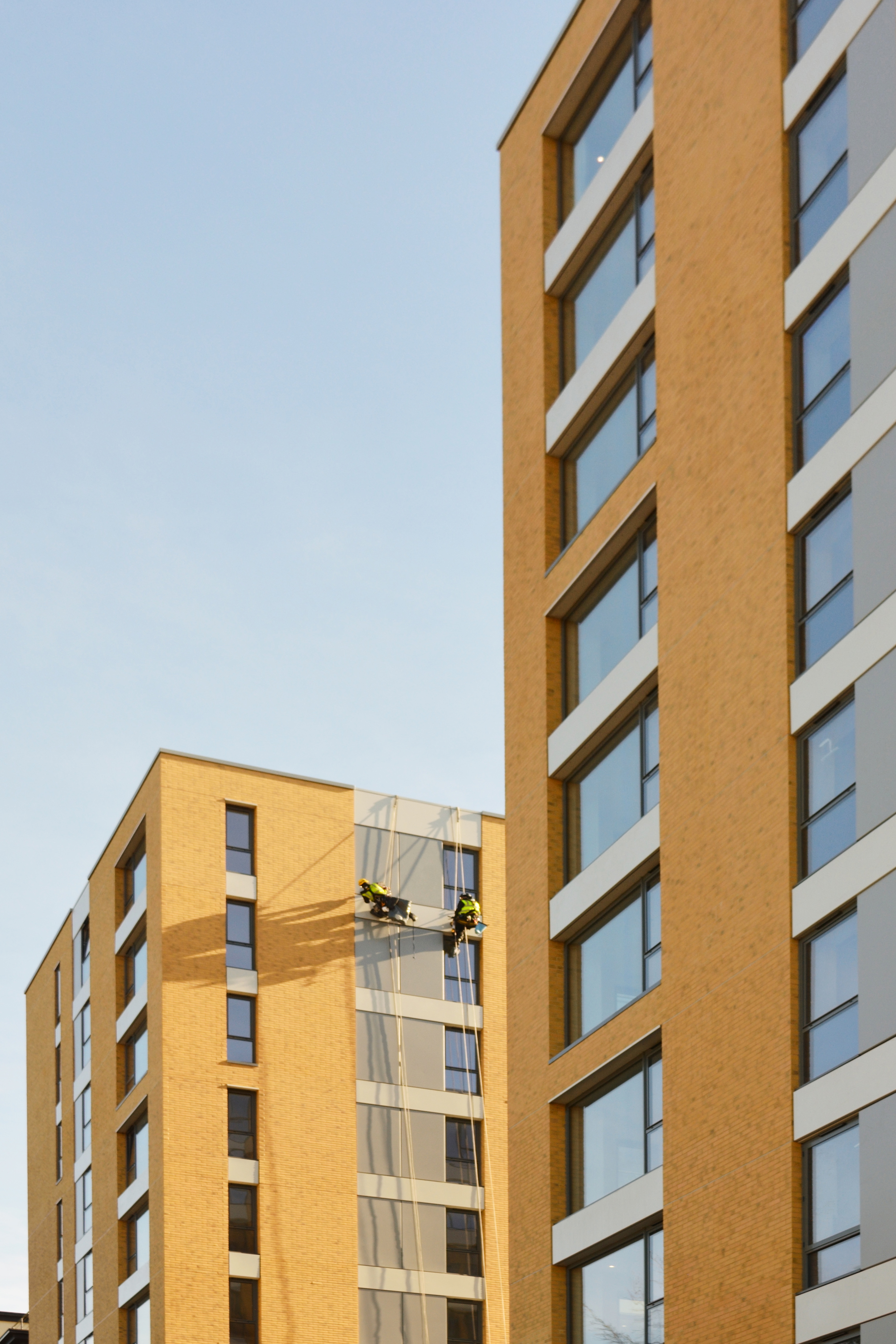

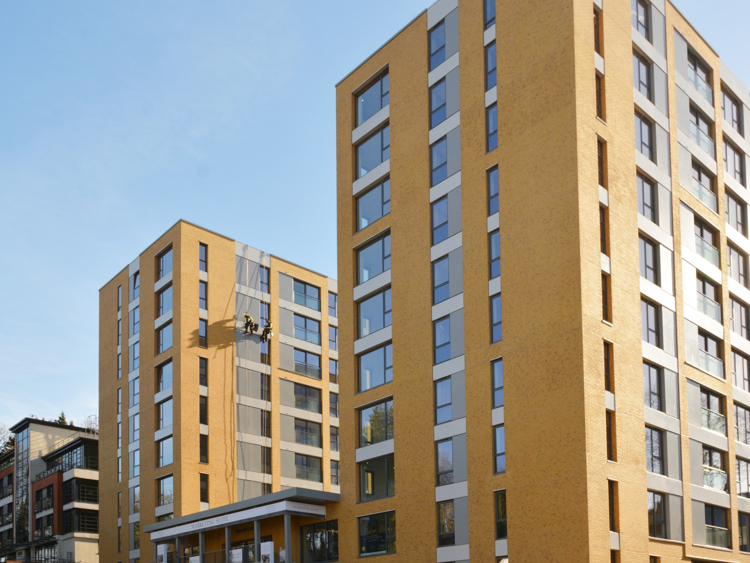

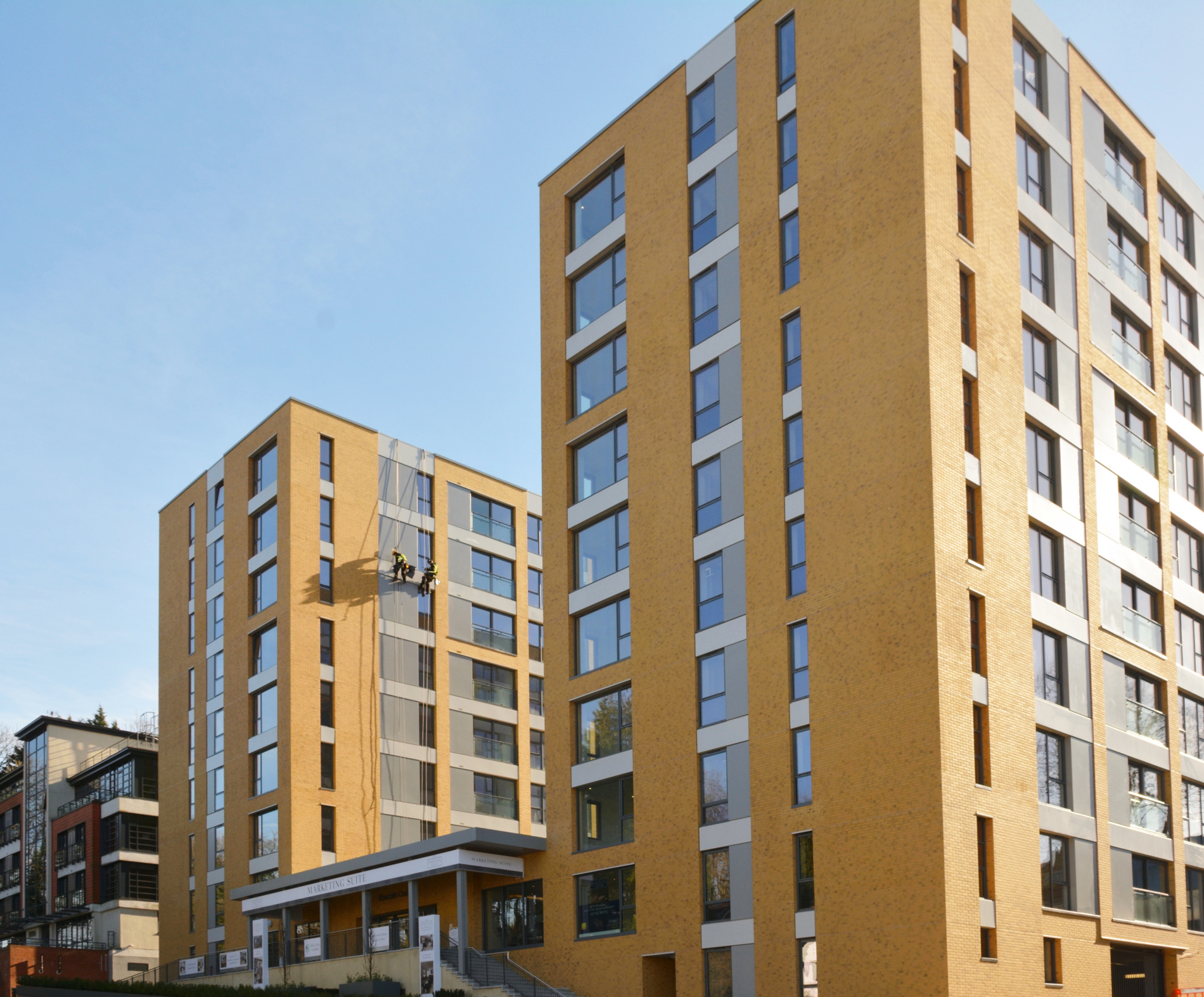

Tubs Hill_1_1.jpg

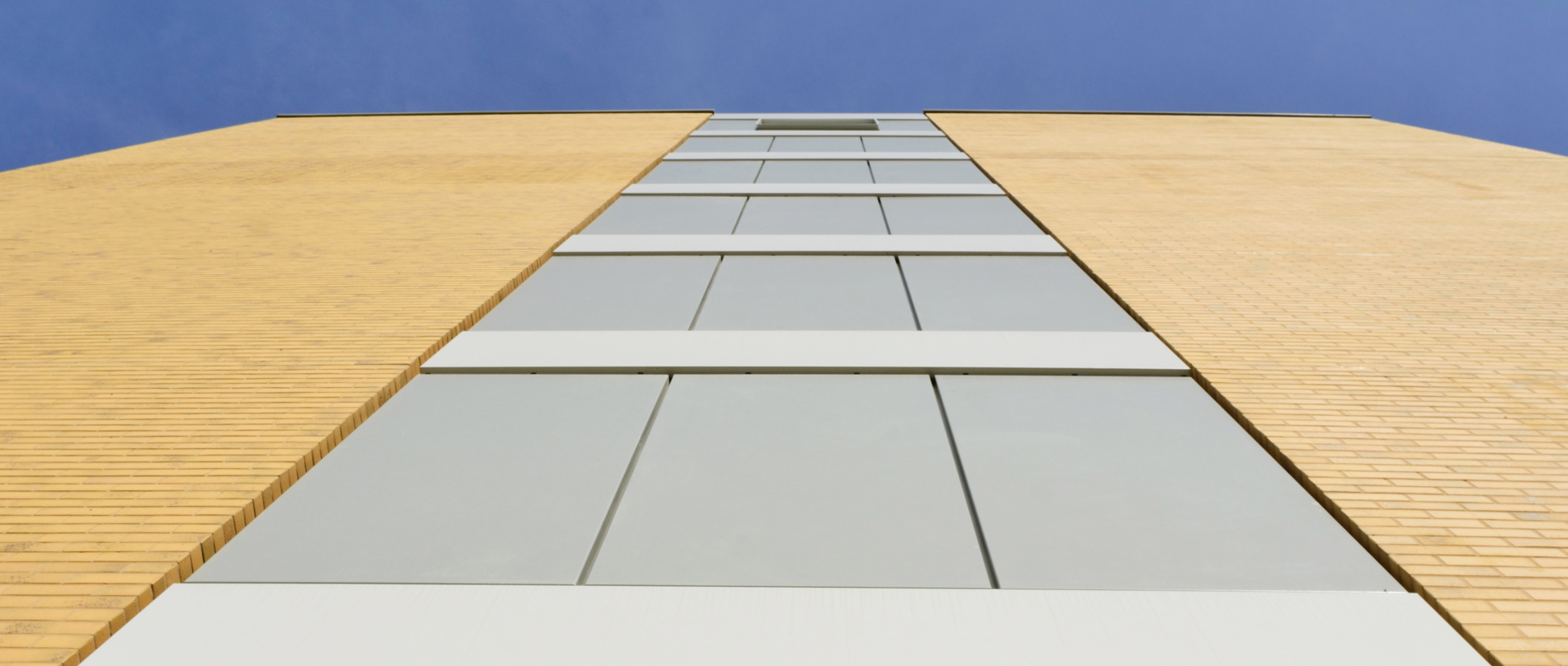

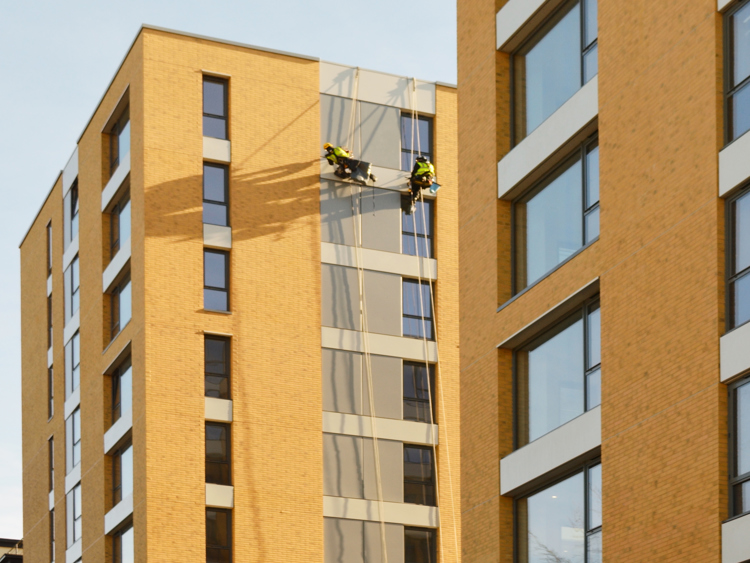

Tubs Hill_2.jpg

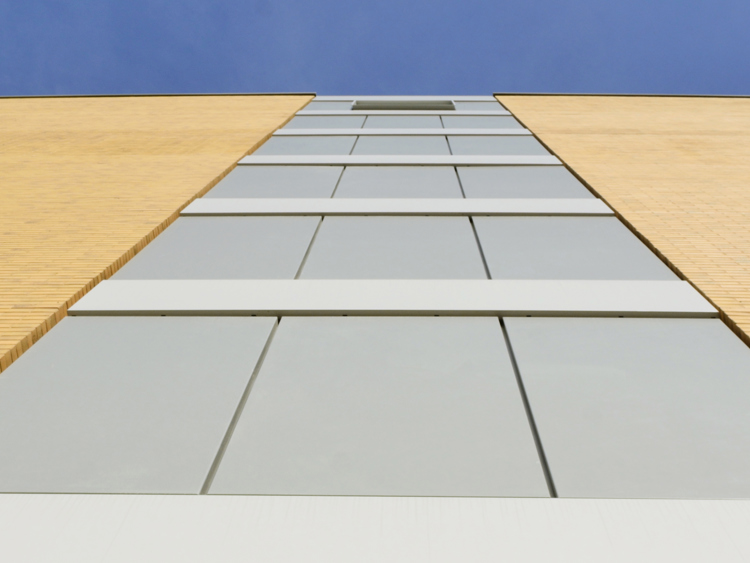

Tubs Hill_3.jpg
