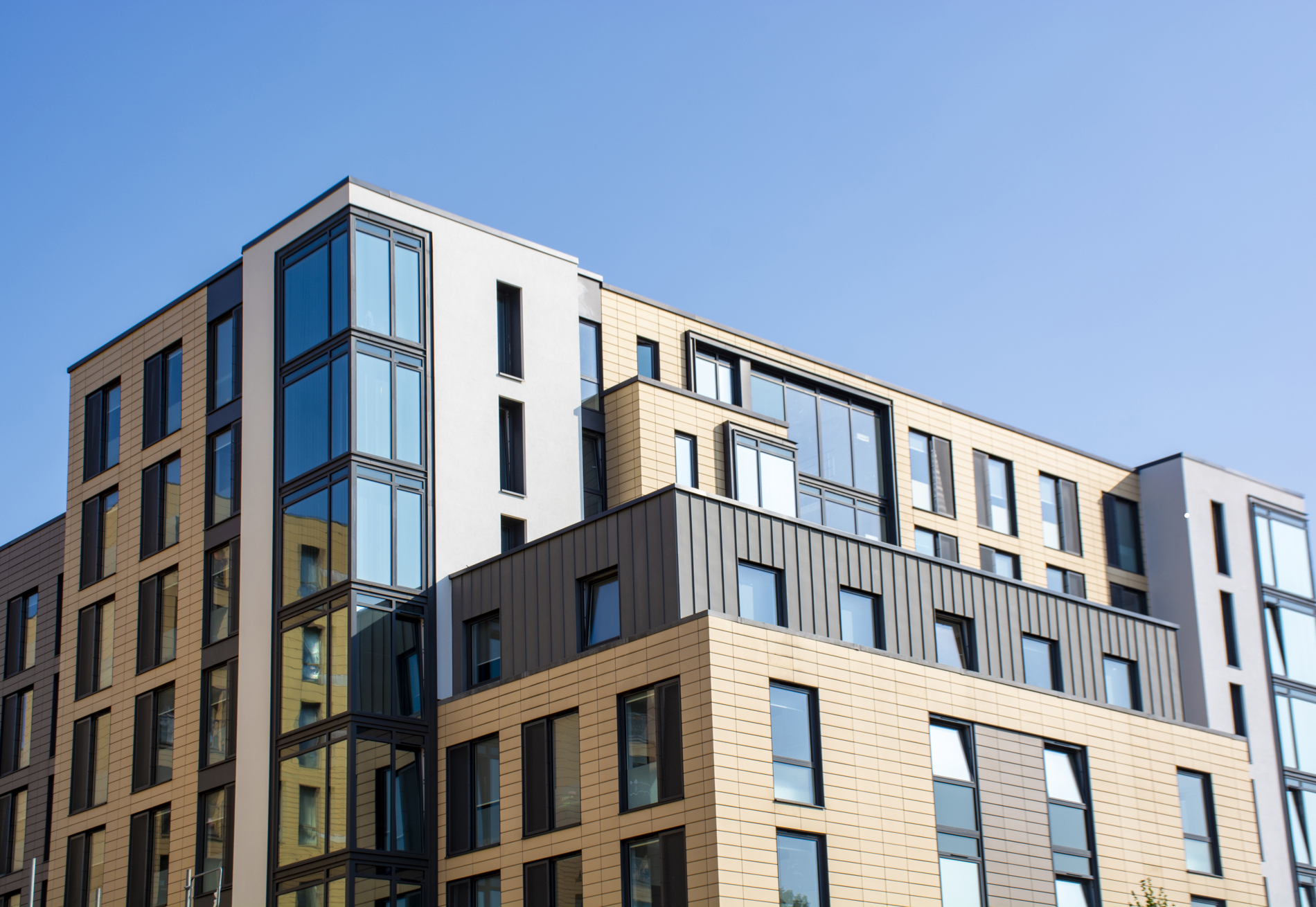

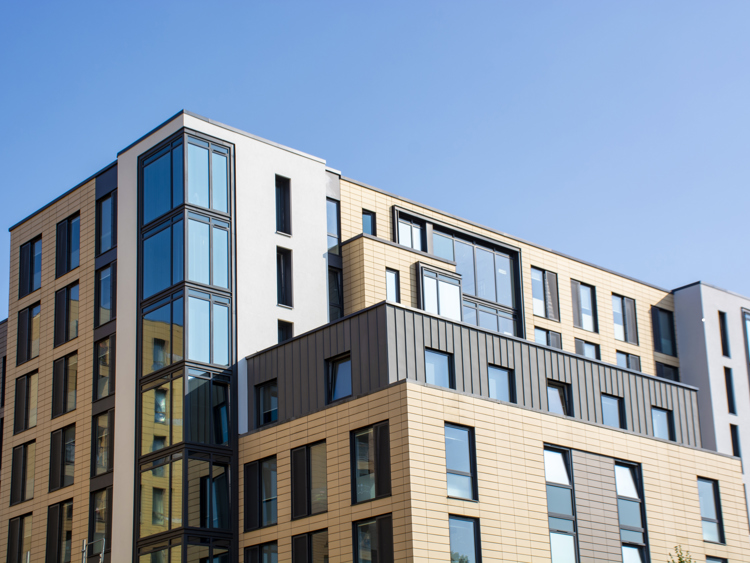

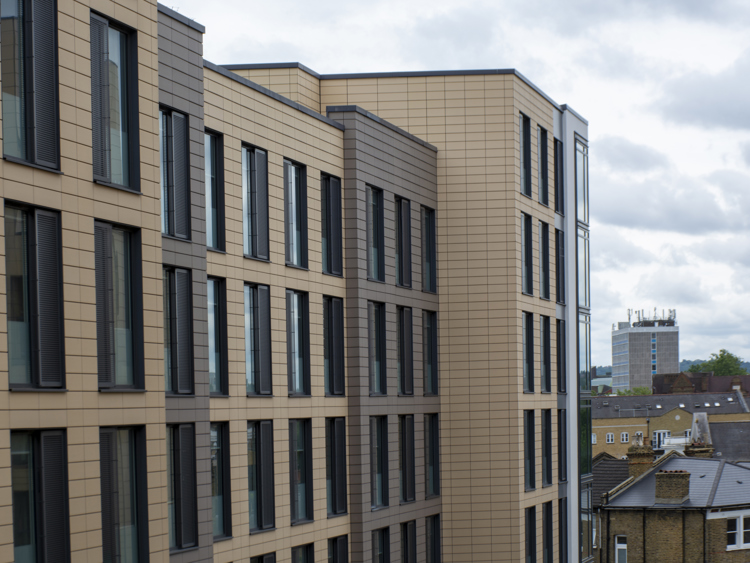

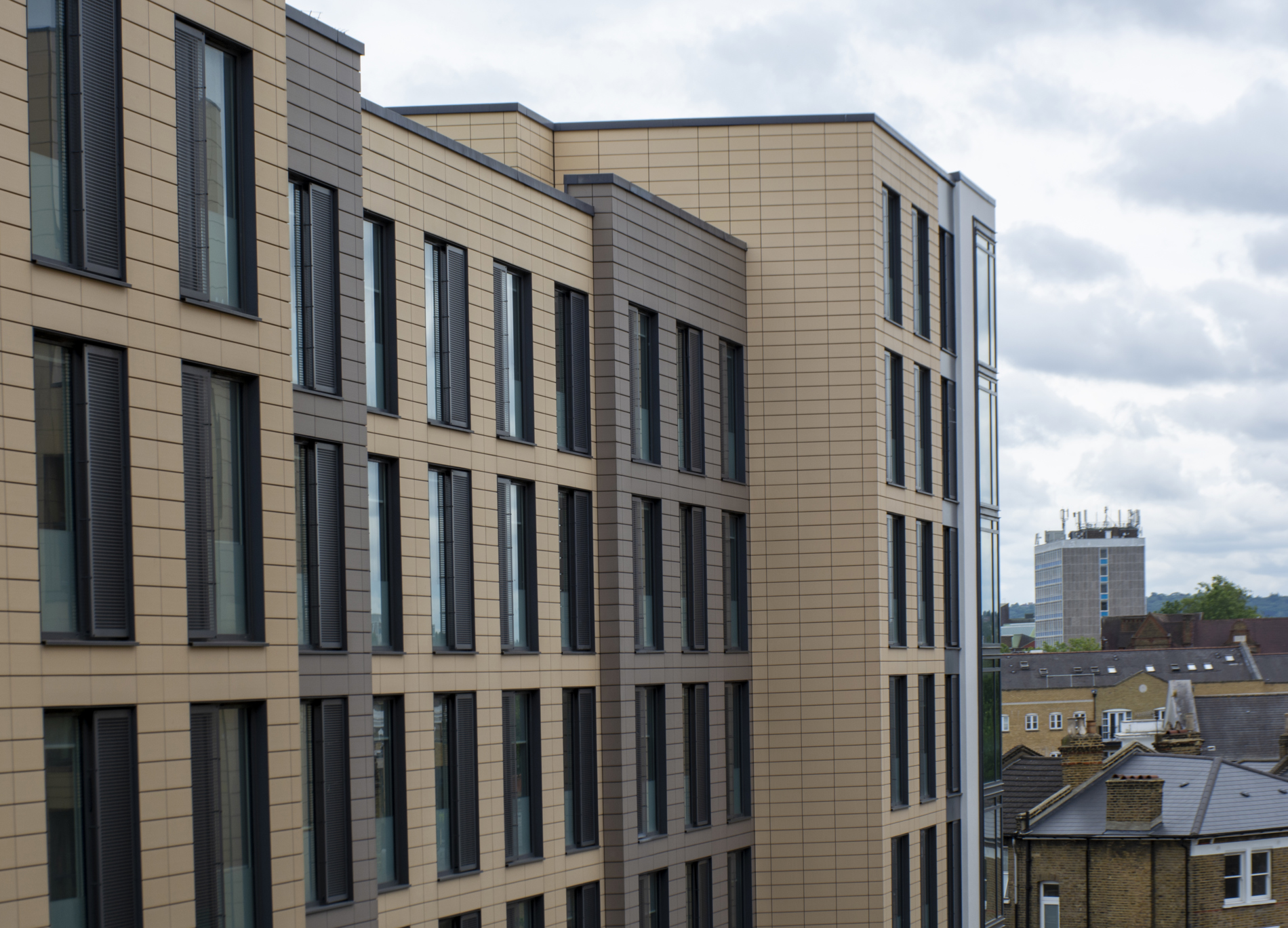

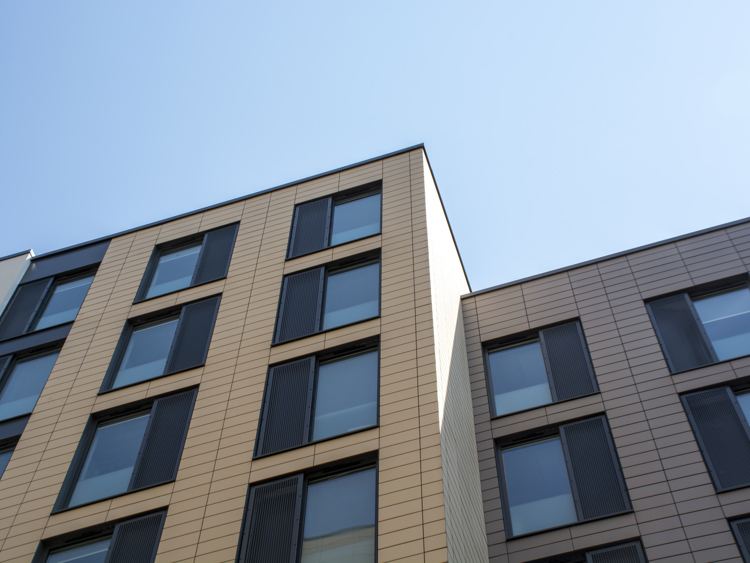

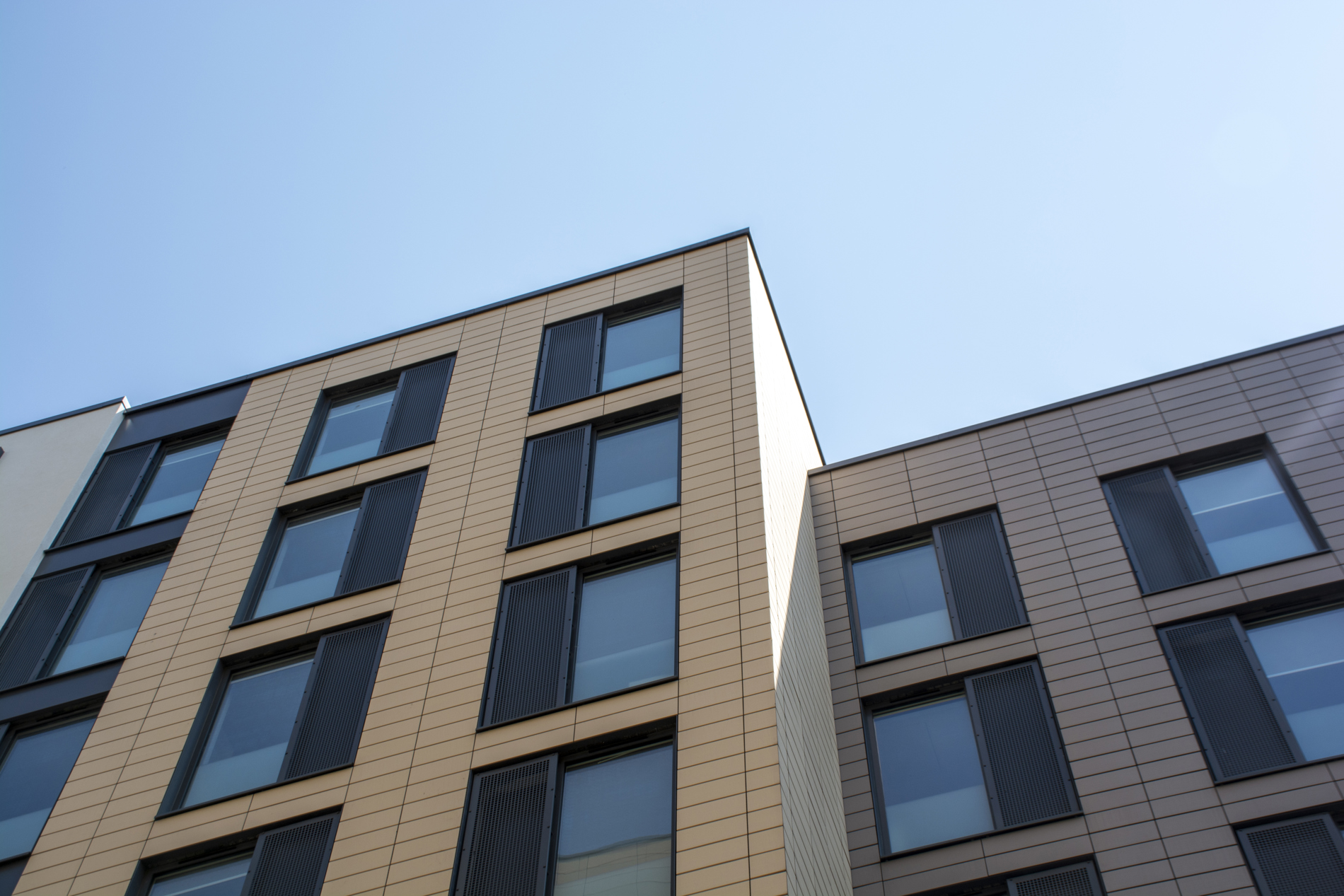

The Bottle Store | Stockwell

The Bottle Store | Stockwell was a residential development project covering 8 floors with a façade surface area of 4,000m2. The subframe was Fischer SystemEVT to J&T horizontal carrier rail. The wall brackets were fixed to concrete using FBN II 10/20 A4 and Ejot Tek screws.

Facade Surface

4,000 m2

Height of building

8 Floors

Facade Material

Terracotta Tiles

Object data

  • Residential development
  • Height of the building: 8 floors

Details / Specials

  • Facade surface 4,000 m²
  • Horizontal Terracotta Tiles by James & Taylor
  • Density of the cladding panel 2000 Kg/m³
  • Maximal wind load considered 1056 N/m²=
  • Subframe Fischer SystemEVT to J&T horizontal carrier rail
  • Wall brackets fixed to concrete using FBN II 10/20 A4 and to Metsec 1.2mm using Ejot Teks
