Rodaus Town | Canterbury

Rodaus Town was a residential development covering 3 floors in Canterbury. The facade surface was 1,500m2 and used Trespa Meteon panel fixed in a diagonal pattern. The subframe was Fischer EVT with custom extruded top hat designed to spam 1.2m. The panel as structurally bonded to the top hat using Dow 896 to create a secret fix.

Facade Surface

1500 m2

Height of building

3 Floors

Facade Material

Trespa Meteon HPL

Object data

  • Residential development
  • Height of building: 3 floors

Details / Specials

  • Facade surface 1,500m2
  • Trespa Meteon panel fixed in diagonal pattern
  • Subframe Fischer EVT with custom extruded top hat designed to spam 1.2m
  • Panel structurally bonded to top hat using Dow 896 to create a secret fix
  • Structural calculations provided on Fischer subframe and Dow 896
  • Building substructure SFS, subframed fixed to subframe using Ejot JT3 Teks

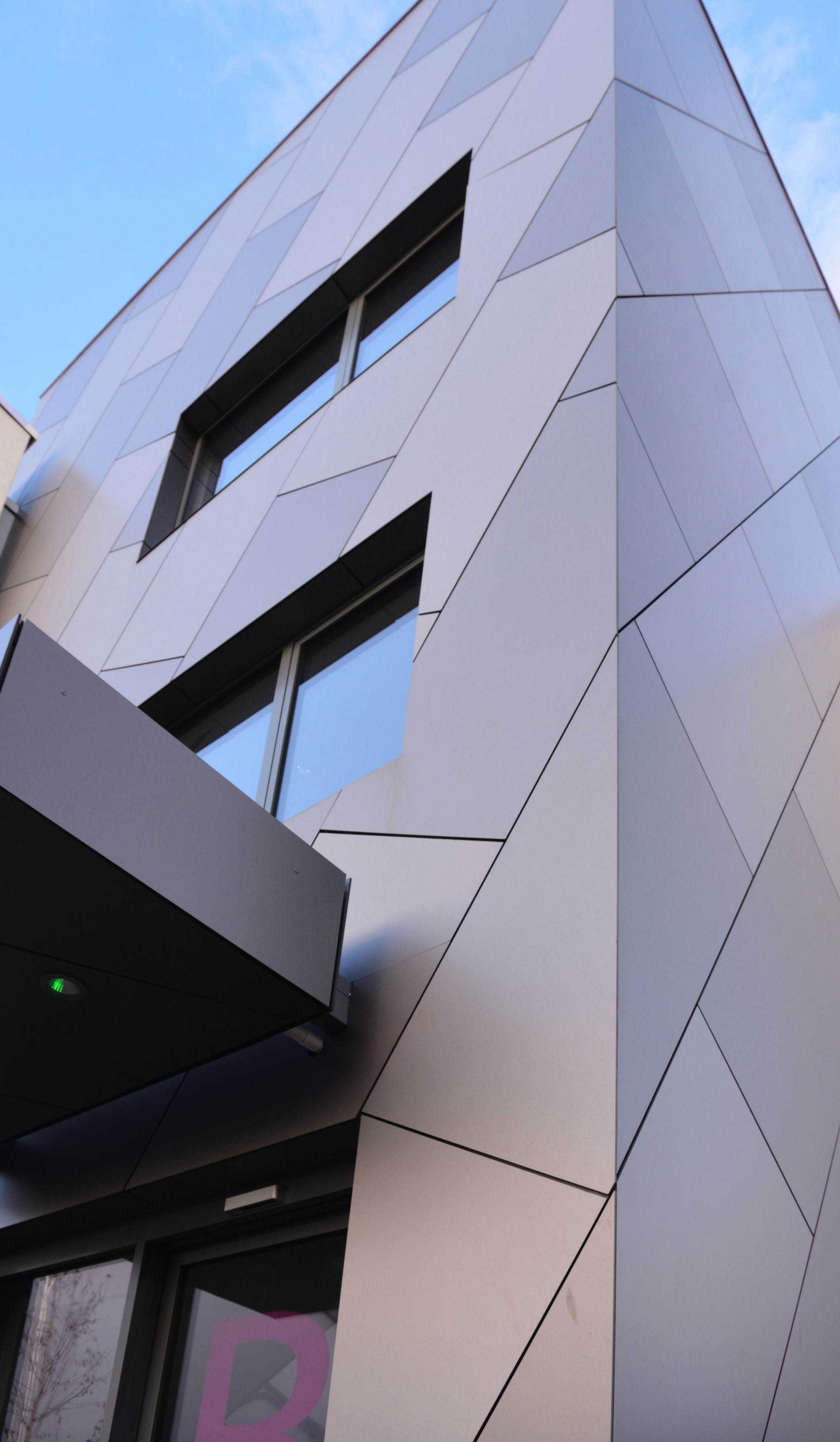

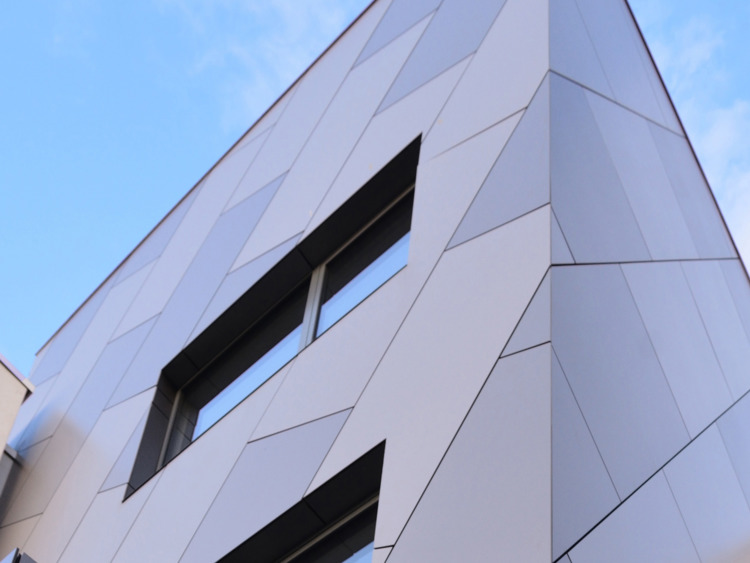

Rhodeus Town 3_2.jpg

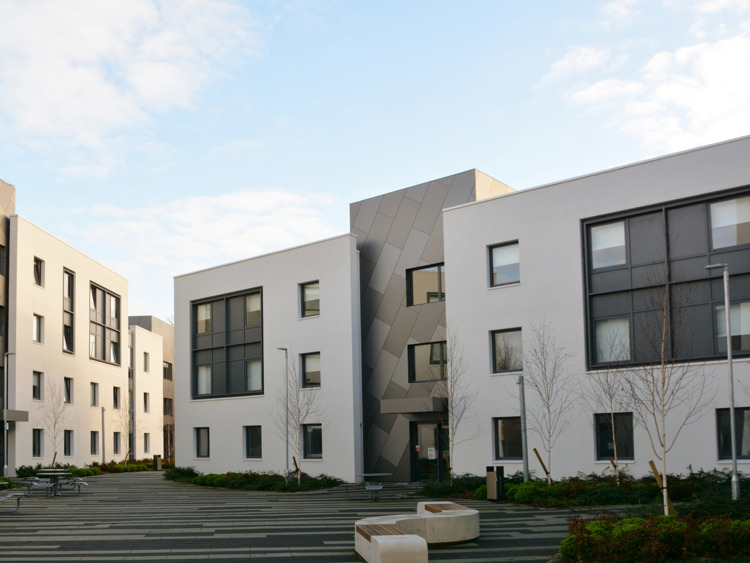

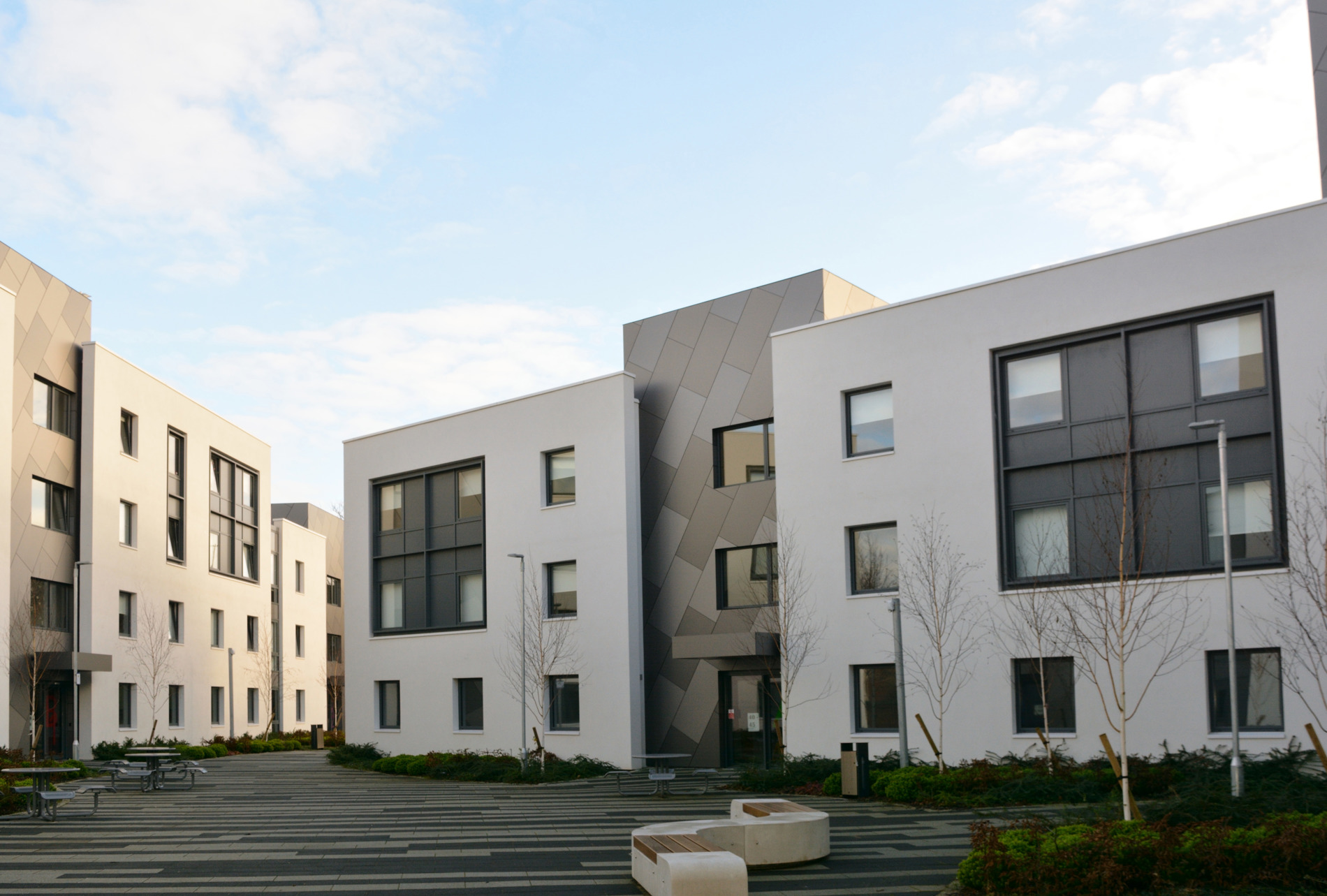

Rhodeus Town 1_2.jpg

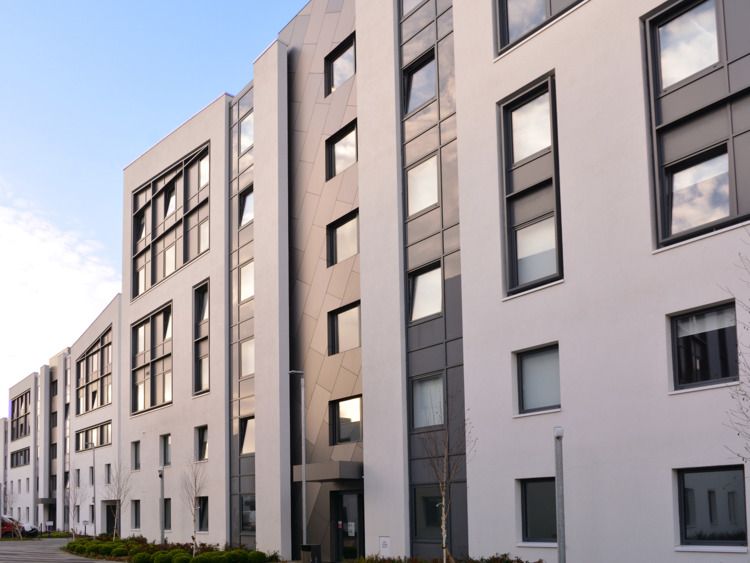

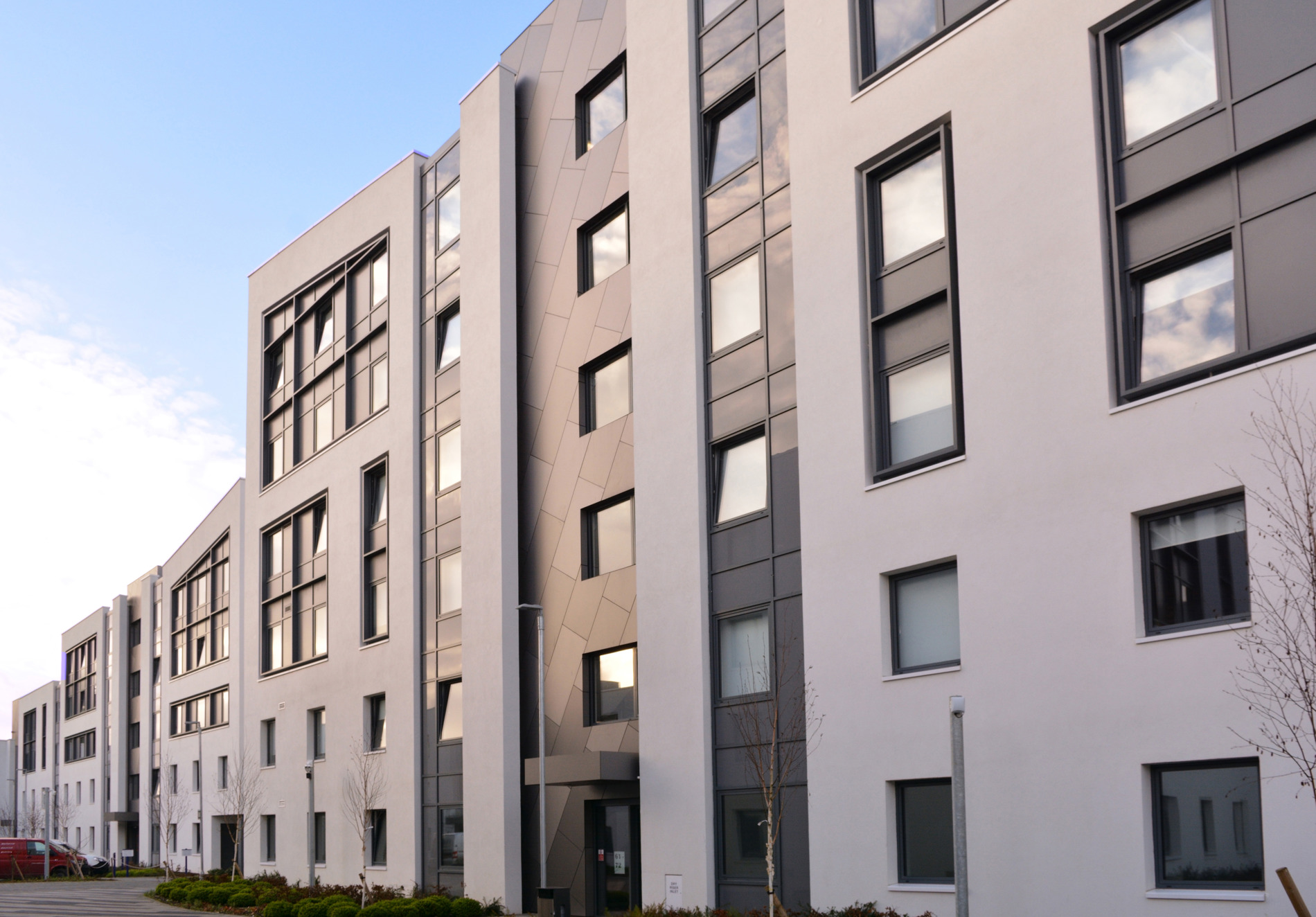

Rhodeus Town 2_2.jpg
