Projects

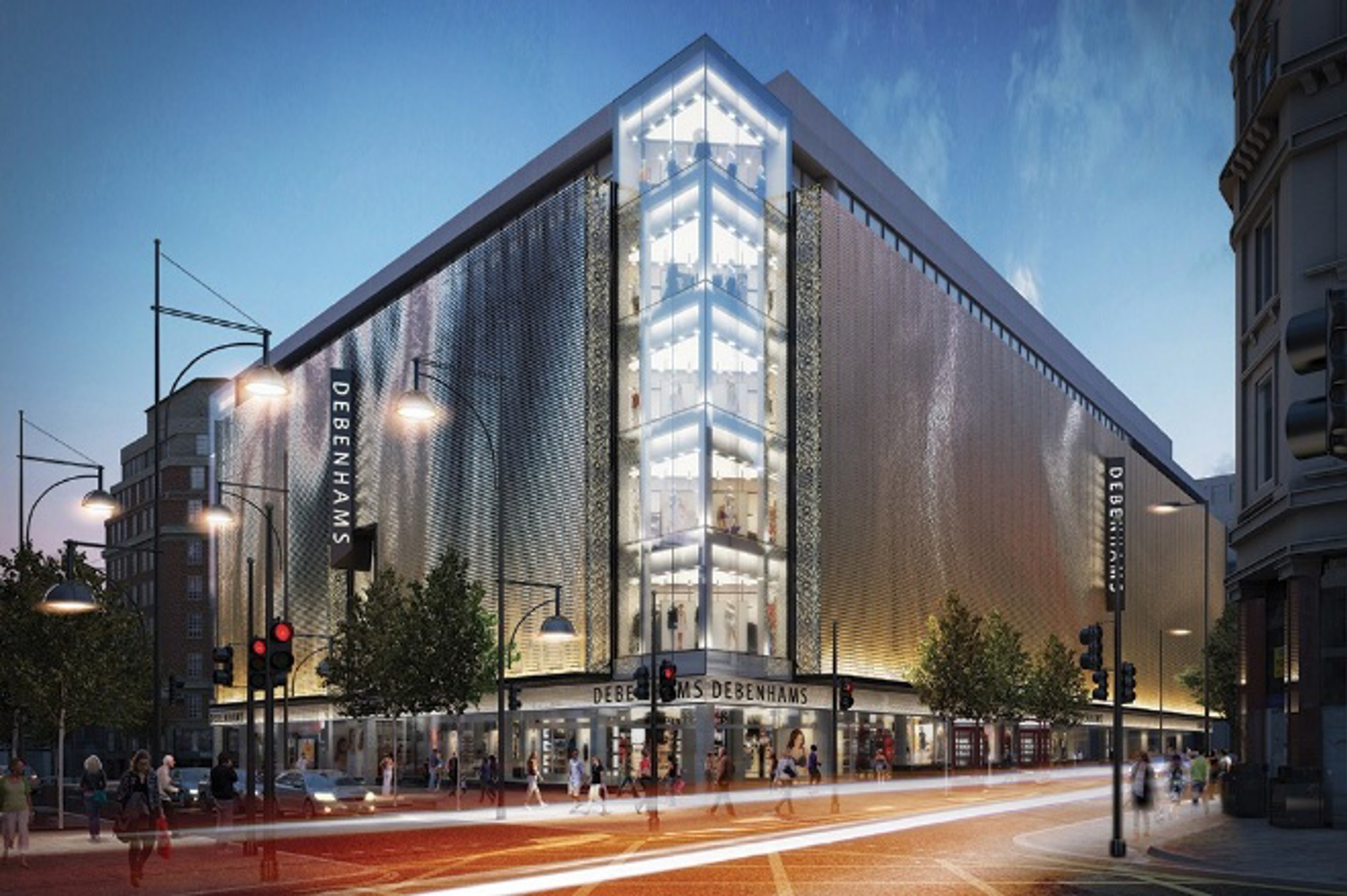

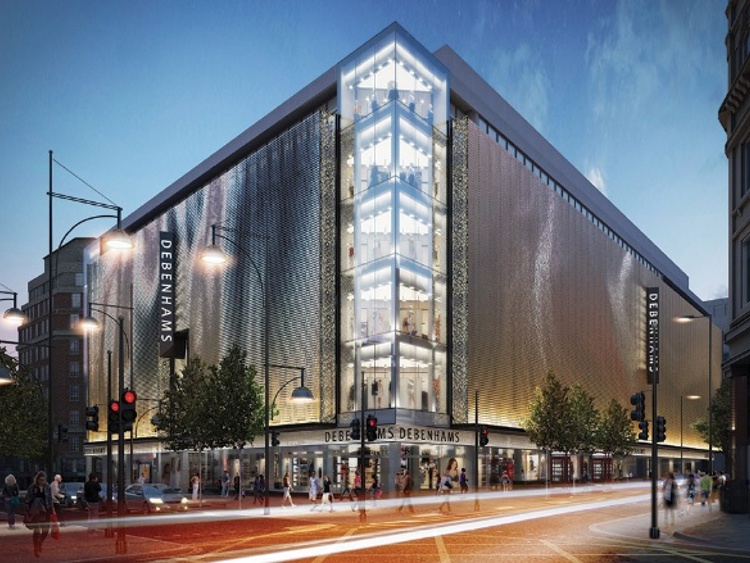

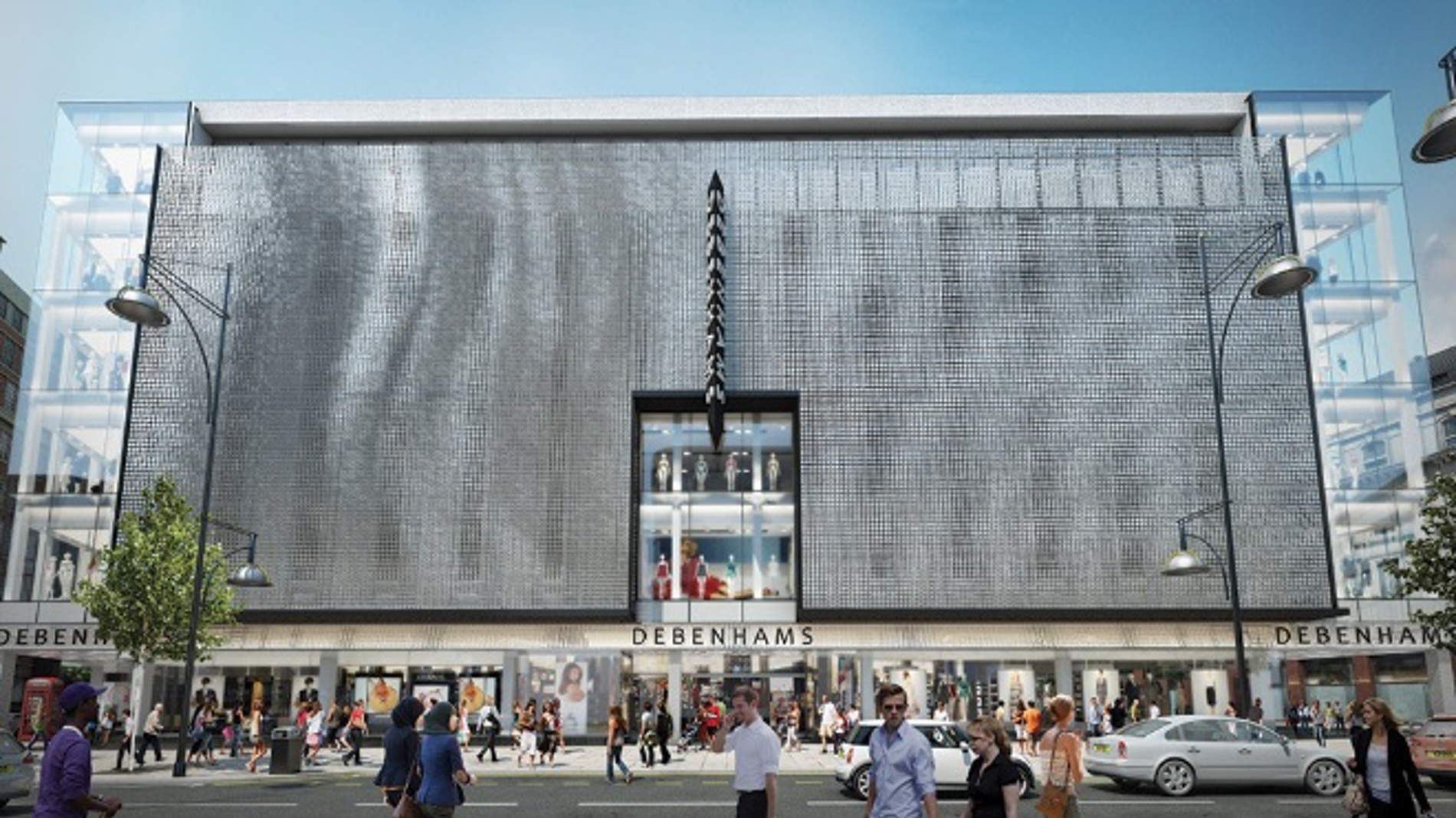

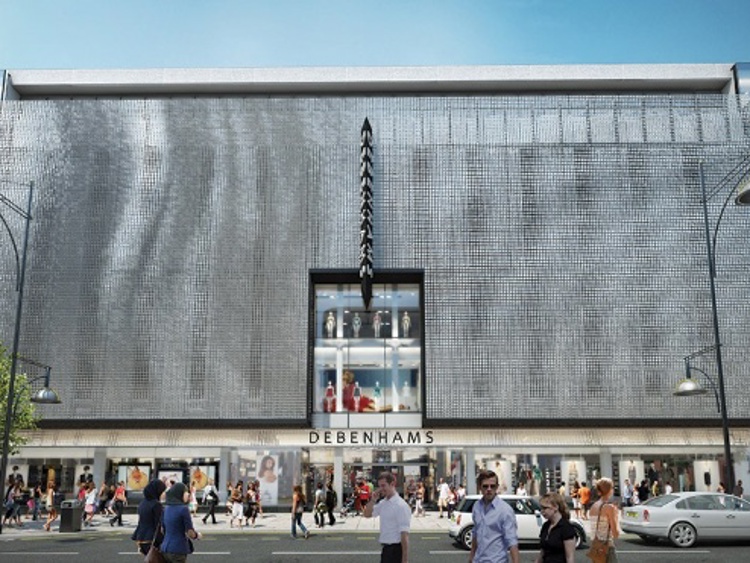

Debenhams | Oxford Street

Debenhams, Oxford Street was designed by Ned Khan in collaboration with Archial Architects. The façade is designed so the aluminium shingles move independently of each other to create a visualisation of air movement. The façade surface is 4,400m2. RJ Fixings provided design support and fabrication of the fixing method of tile to aluminium carrier rails and resin anchors for steelwork.

Facade Surface

4,400 m2

Height of building

7 Floors

Facade Material

Object data

  • Ned Kahn Kinetic Facade to the design of Archial Architects
  • The facade is designed so aluminium shingles can all move independently of each other to provide a visual pattern of air movement across the facade

Details / Specials

  • Facade surface 4,400m2

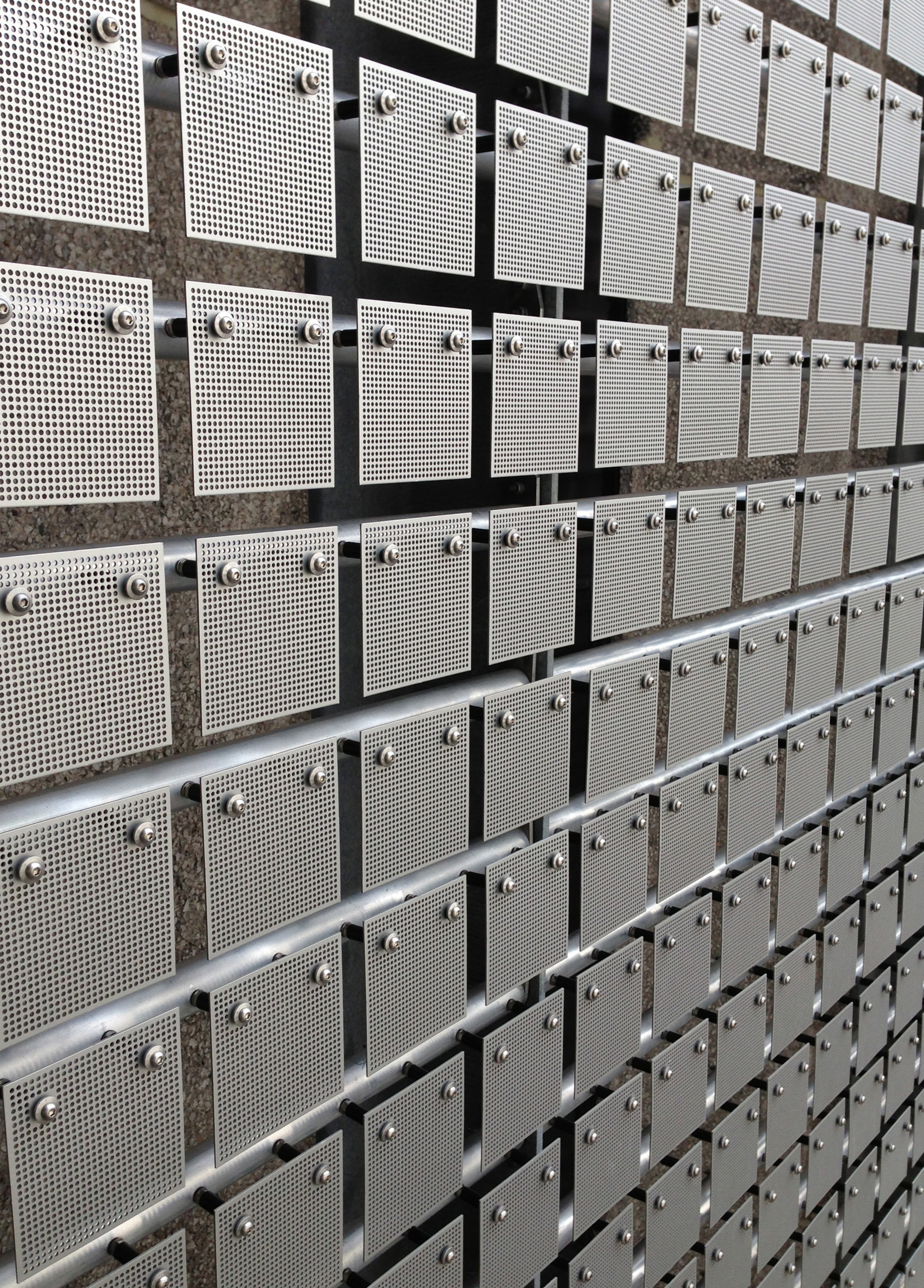

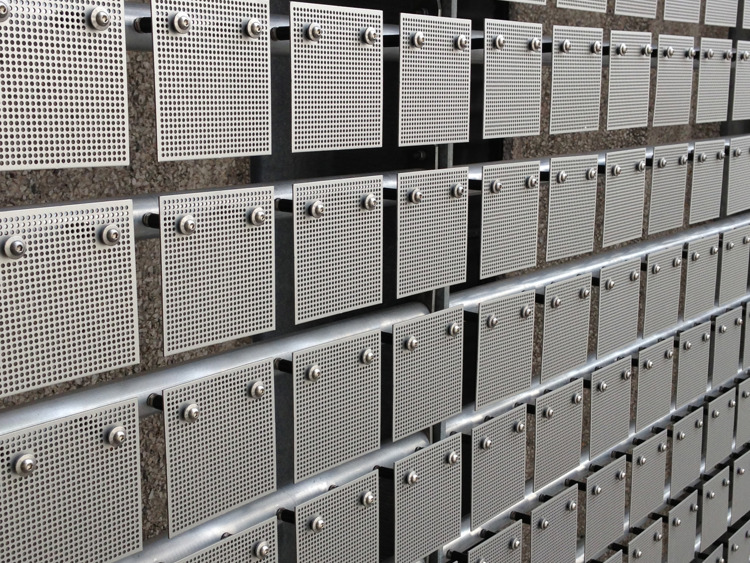

  • 187,391 Nr 2mm 125 x 125 aluminium shingles with 752 Nr 3mm dia holes
  • RJ Fixings provided design support and fabrication of the fixing method of tile to aluminium carrier rails and resin anchors for steelwork
