Projects

Bunhill Row | London

Bunhill Row | London was a residential development project covering 5 floors with a façade surface area of 500m2. The subframe used was Fischer SystemEVT and wall brackets fixed using Ejot Tek screws and Fischer FBN II 10/20 A4.

Facade Surface

500 m2

Height of building

5 Floors

Facade Material

Senses Panel

Object data

  • Residential development
  • Height of the building: 5 floors

Details / Specials

  • Facade surface 500 m²
  • Cladding material is Senses Panel
  • Maximal panel size on the facade is 225 x 3000mm
  • Density of the cladding panel is 20 Kg/m²
  • Maximal windload is considered 1800 N/m²
  • Subframe Fischer SystemEVT
  • Building Substructure concrete & Metsec 1.2mm wall brackets fixed using Ejot teks and Fischer FBN II 10/20 A4

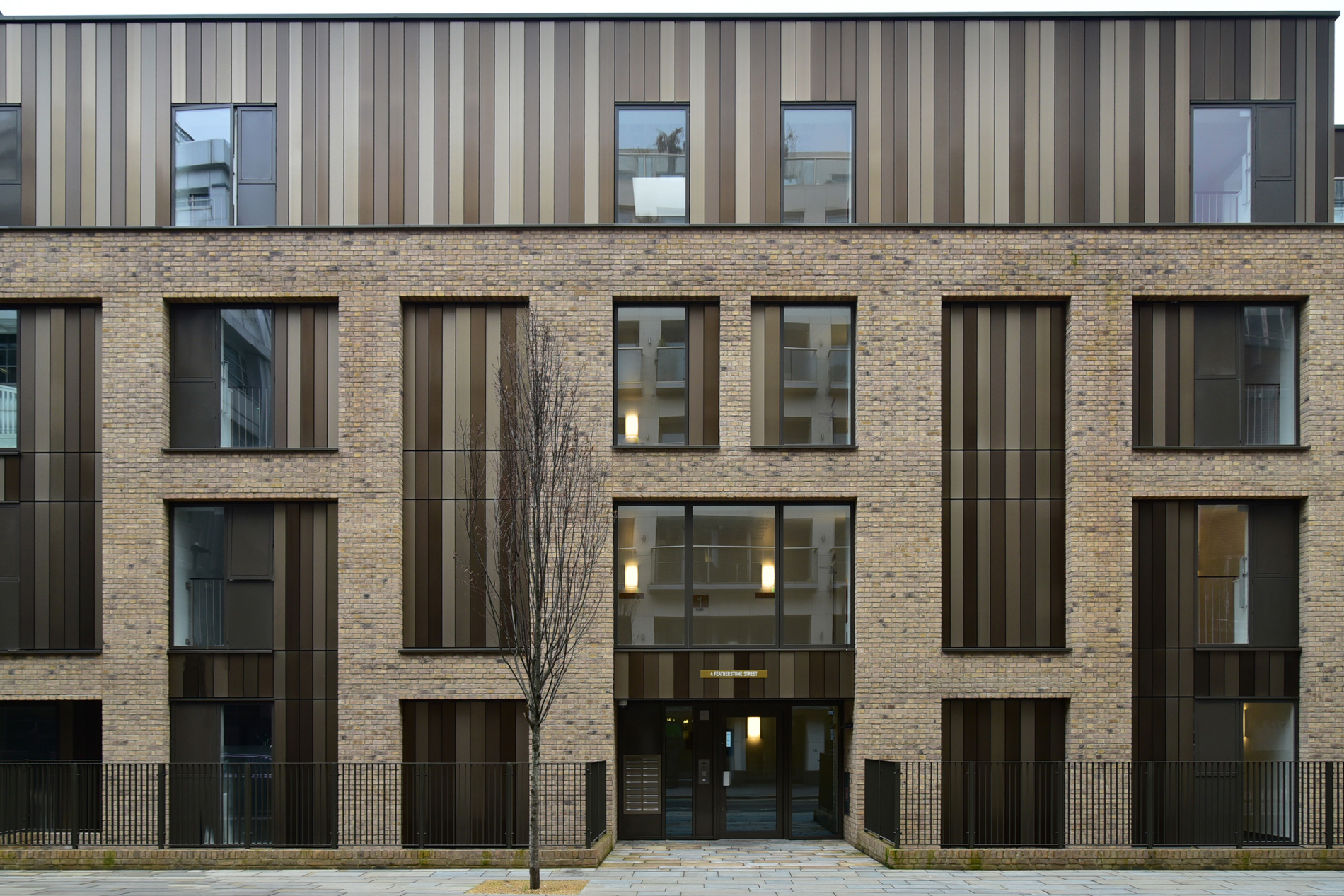

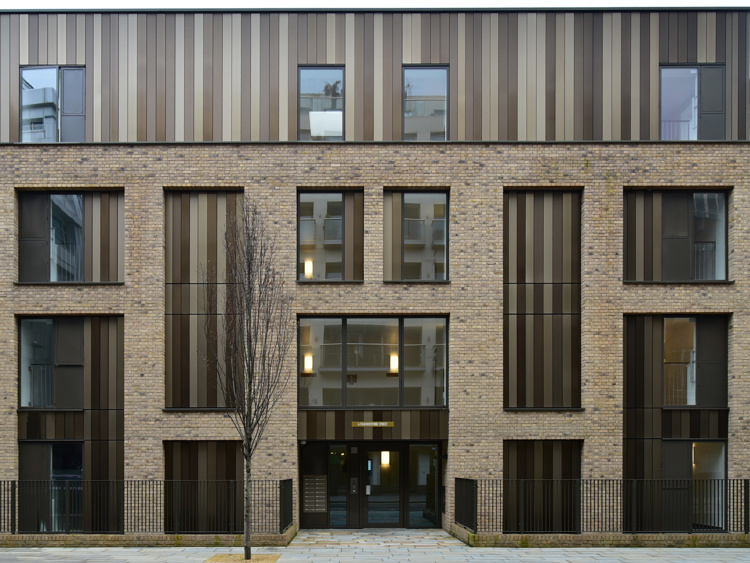

CCS BH 049_1.jpg

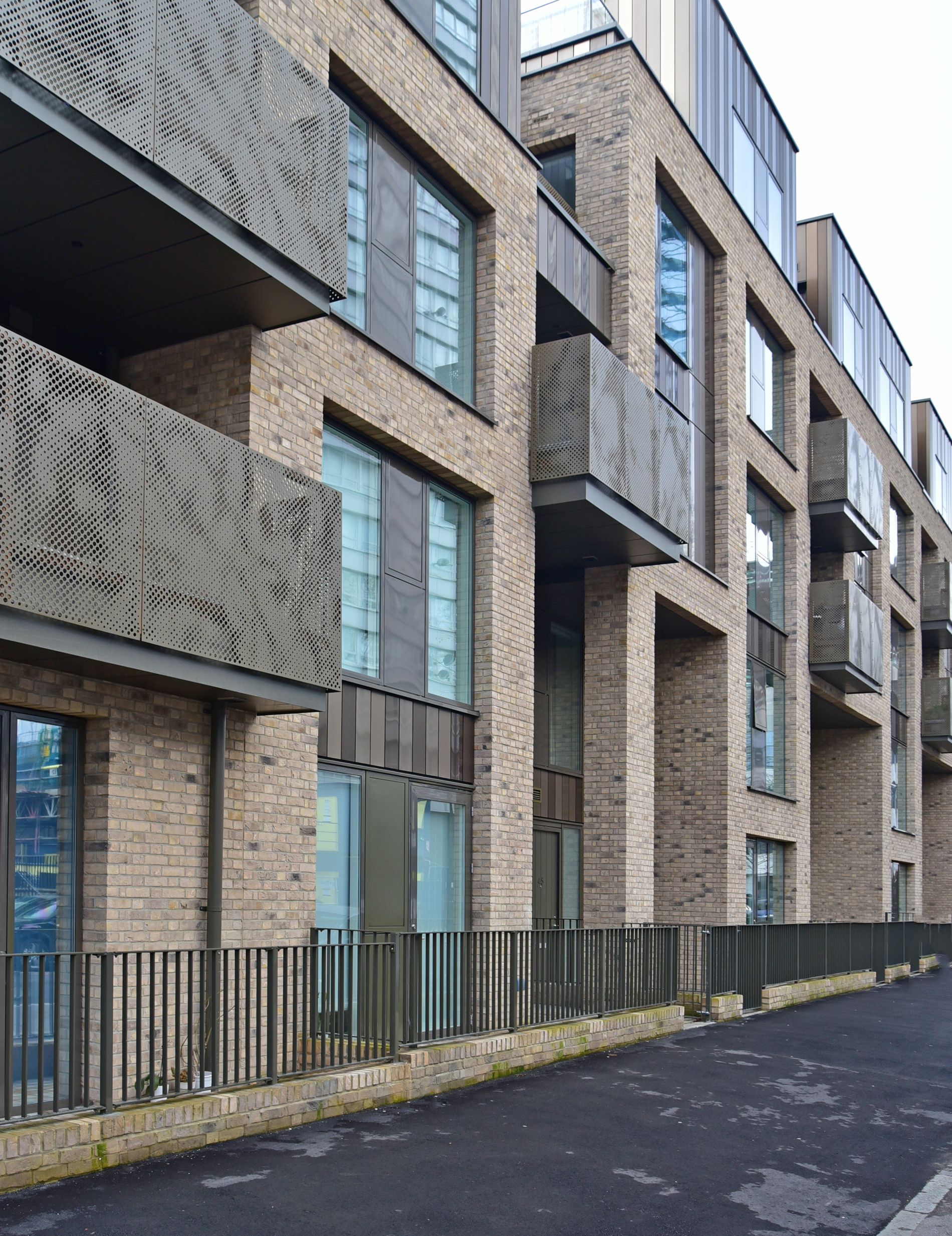

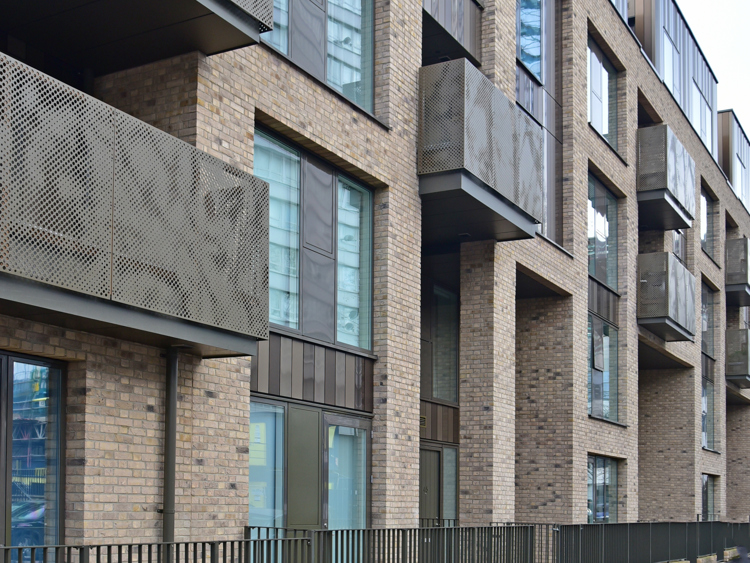

CCS BH 058.jpg

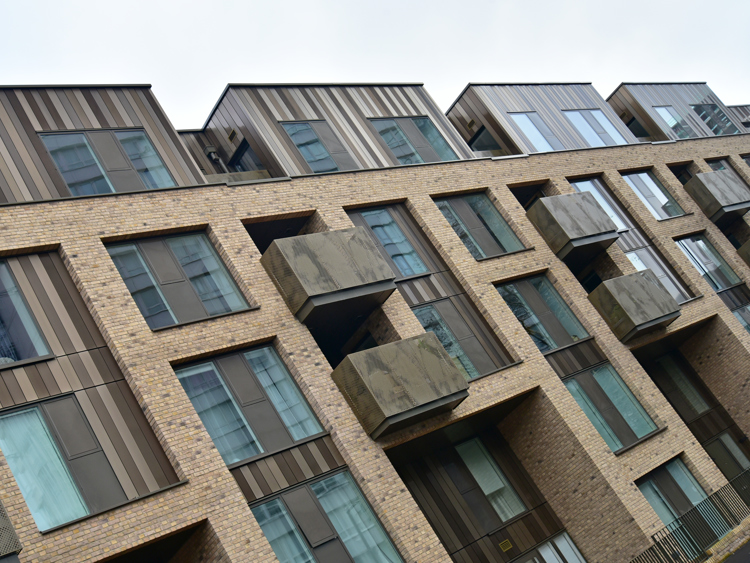

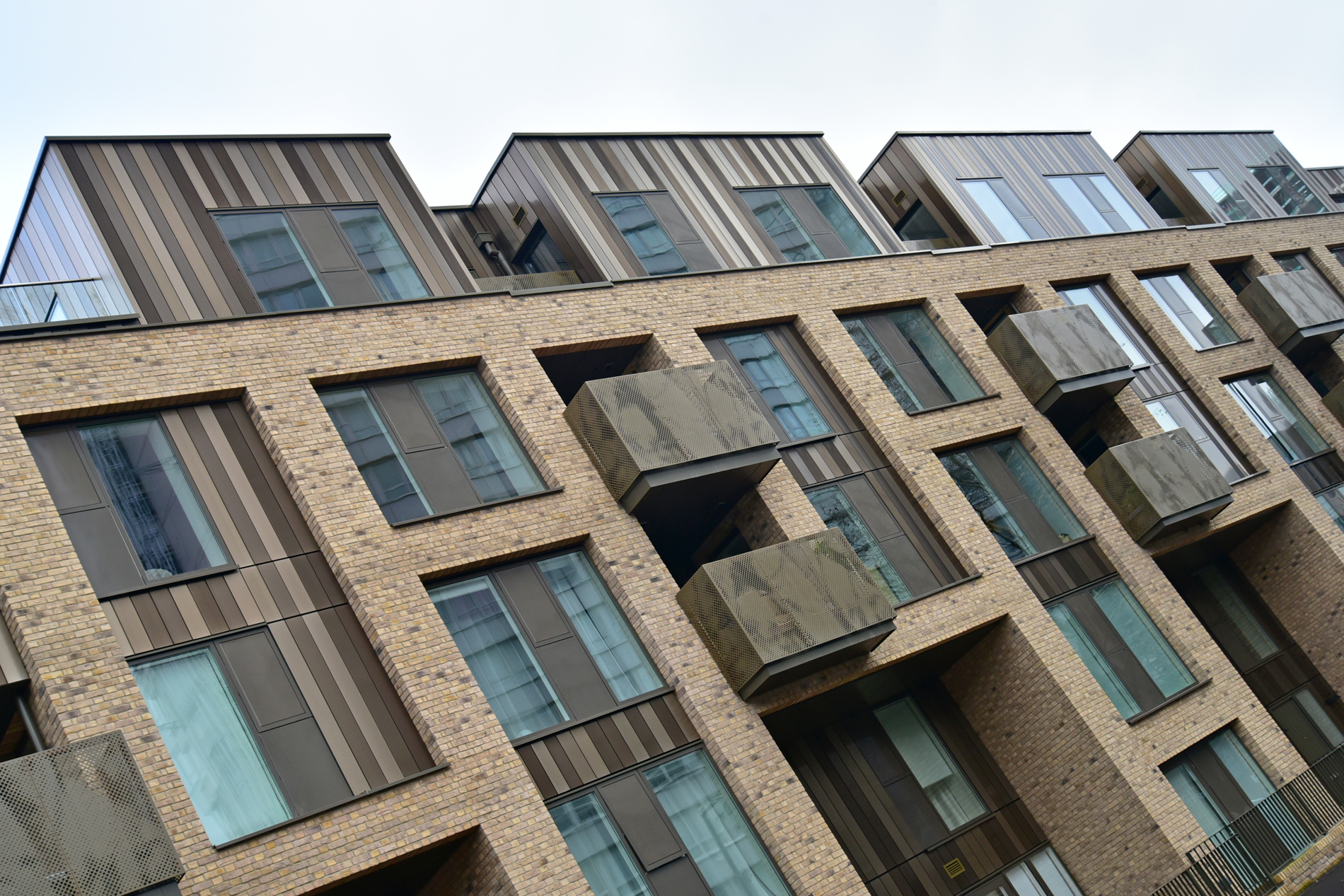

CCS BH 084.jpg
