System for ventilated façade consisting entirely of extruded aluminium elements. Vario Lamella differs from the existing solutions with the unique cladding material - Aluminium Lamella.

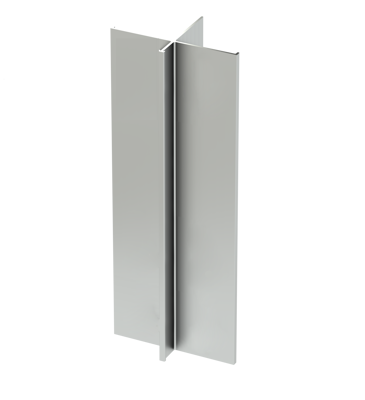

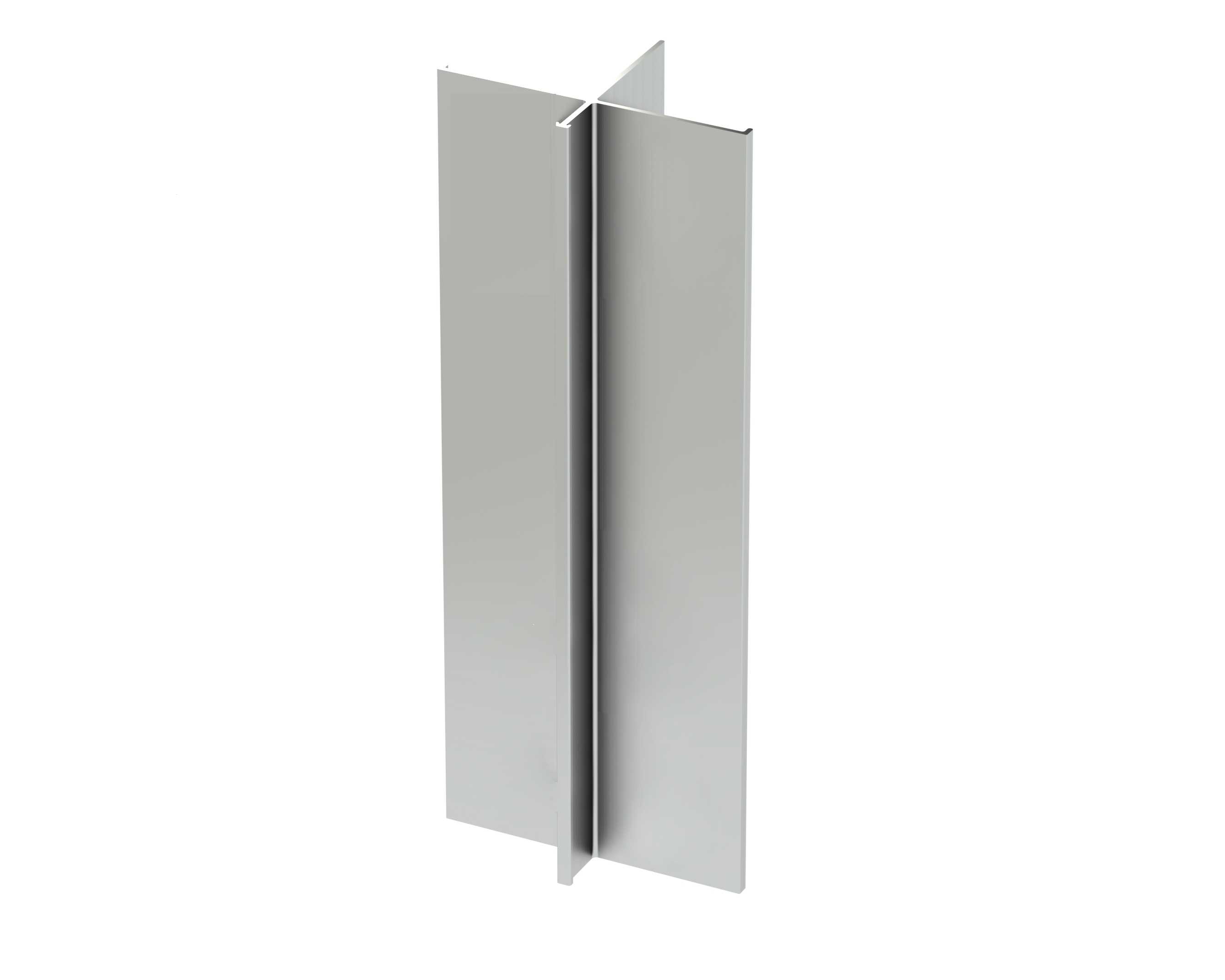

The product ensures accurate fixed 8mm vertical gap by specially selected main vertical profile and 8mm horizontal negative gap, defined by the lamellas.

Bracket and profile configuration is specified by RJ Facades technical department. To submit your project specifics please go to Facade Designer.

Read more Enquire Now
  • Downloads
  • Approvals
  • UL Winmark Approval (UKAS Product Certification)

    The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.

    The Approval Covers

    A detailed overview of the certified products

    Technical specification of the products

    An initial assessment of the certified company's factory production control systems.

    Design considerations

    A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.

    An assessment of the certified products contribution to any key requirement of the building regulations.

    An overview of the certified companies product installation requirements and procedures.

    An overview of all supporting test documentation used for the product evaluation.

    Ongoing surveillance of the certified company's factory production control system and procedures.

    The conditions under which this product certification is valid.



  • Technical Characteristics
  • Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading

    The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.

    Bracket configuration is specified by RJ Facades technical department. To submit your project specifics please go to Facade Designer.

    RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.

    Project thermal calculations to confirm insulation thickness available on a project by project basis.

    RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.

    System components available in AutoCAD and PDF downloads.

    RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.

    All rails available to specific RAL colours in Qualicoat on an order to order basis.

  • Typical Façade Systems
  • Vario-L Support System to support aluminium lamella panels.
