Vicarage Gate | Kensington

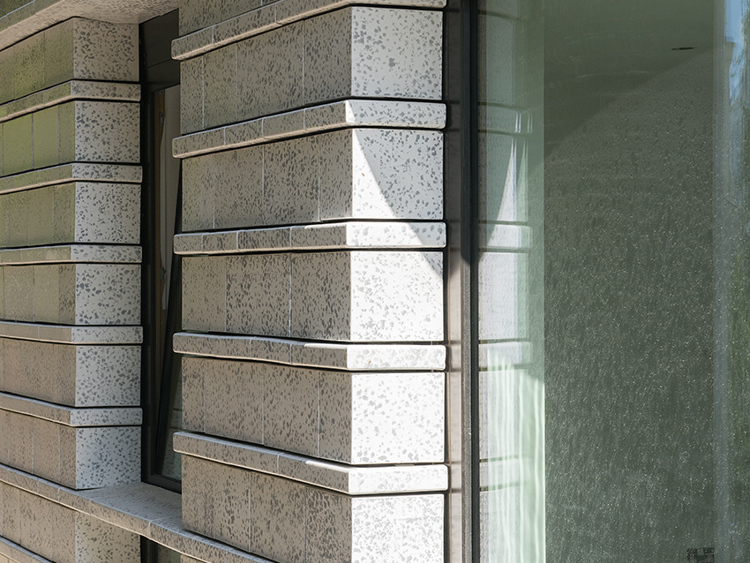

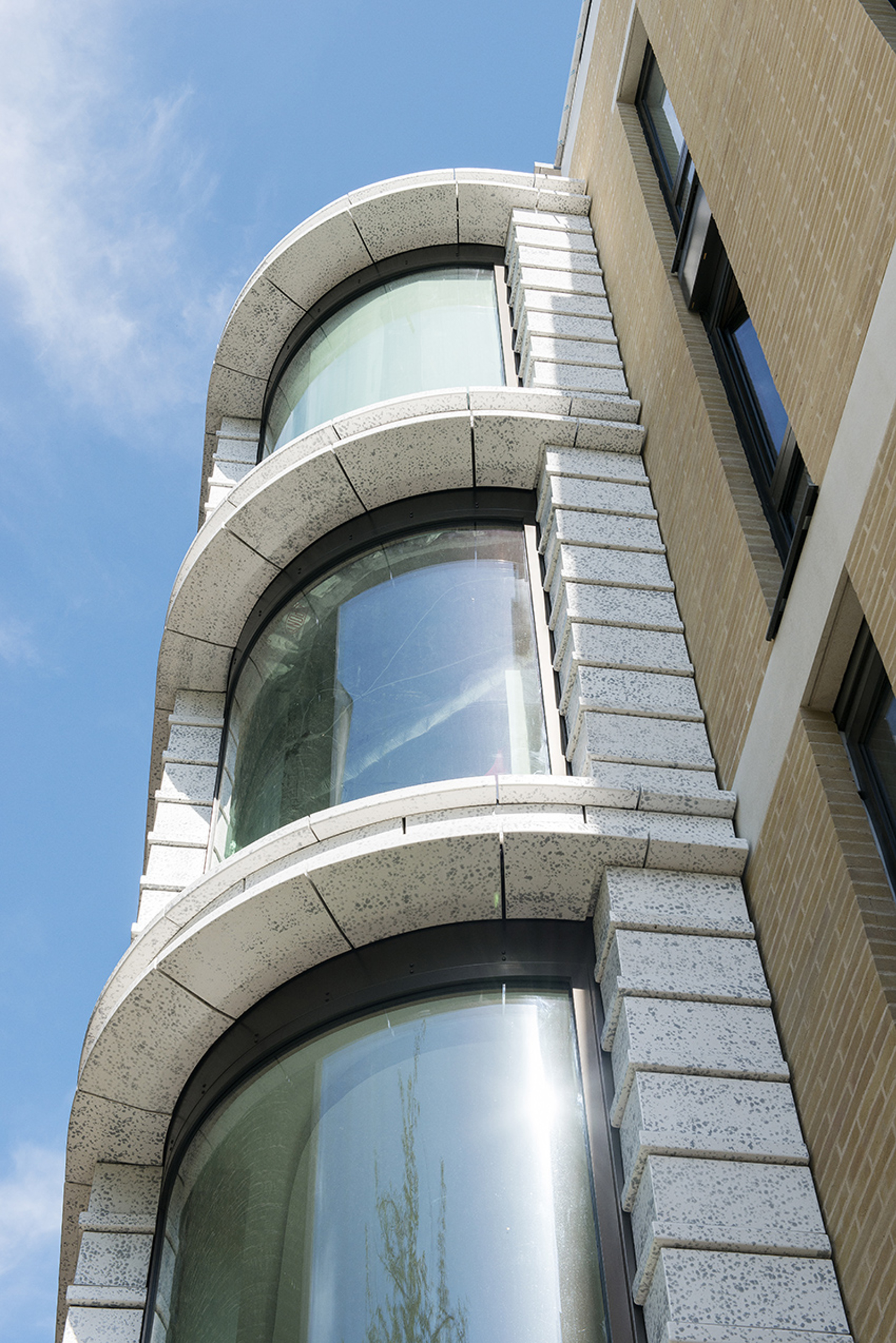

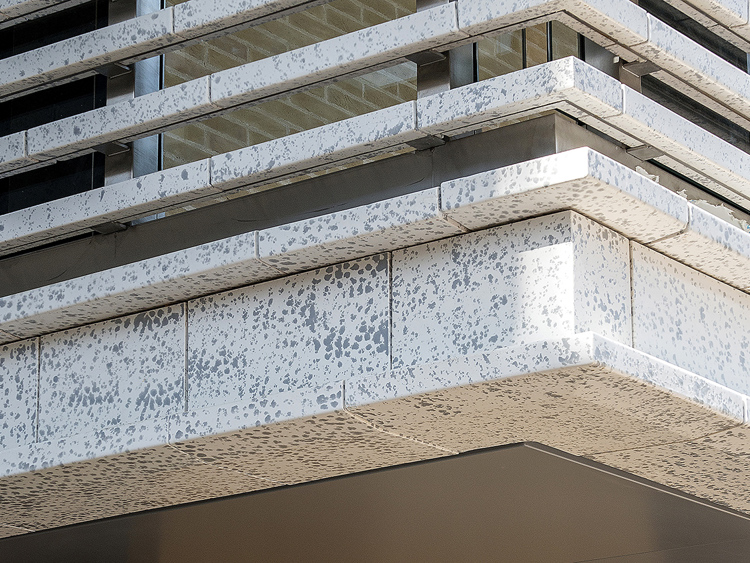

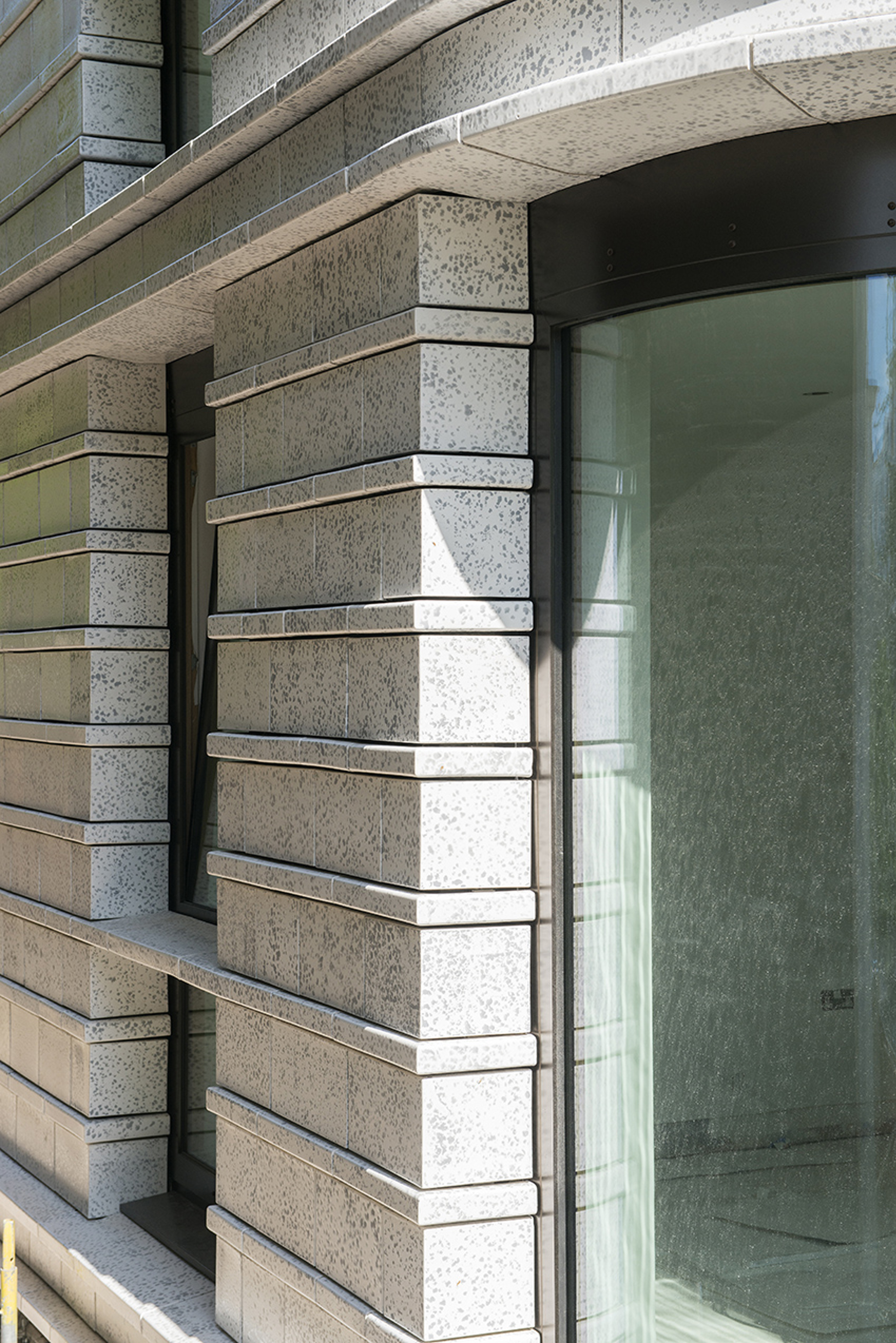

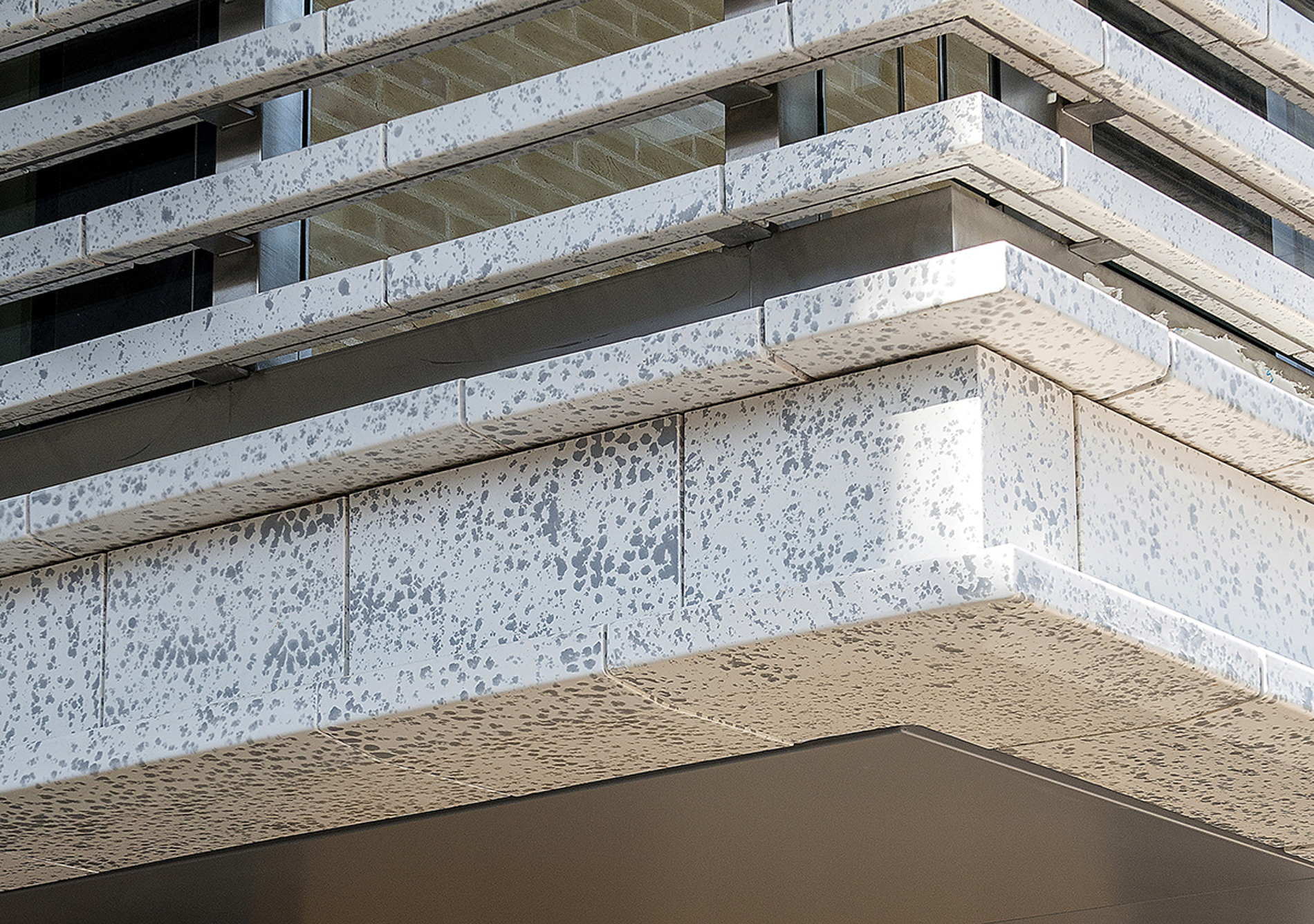

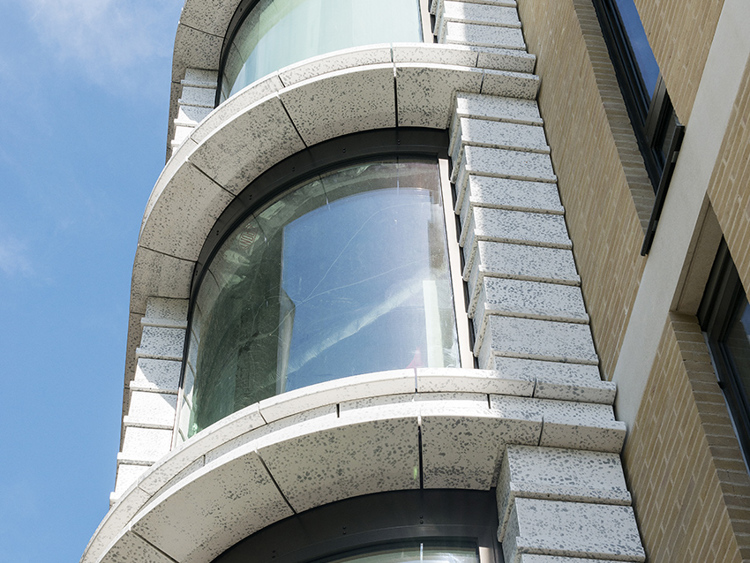

Vicarage Gate is a new build residential development in the heart of Kensington’s cherry tree conservation area in the royal borough of Kensington and Chelsea. The building has a strikingly unique design on the main façade using grey and white mottled faience briquettes positioned in a random pattern with recessed and projecting panels. Each apartment in the development has its own south-facing outdoor space as well as access to a private on-site gym. The coordination and integration of the main façade and support systems required a very complex design and careful planning. The project covered 5 floors with a façade surface area of 500m2, the façade material was a Tichelar Ceramic supported using a bespoke RJ facades substructure, the ceramic panels were hung to create an open joint design, this required horizontal rails and brackets using undercut FZP anchors.

Facade Surface

500 m2

Height of building

5 Floors

Facade Material

Tichelar Ceramic

Object data

  • Residential development
  • Height of the building: 5 floors

Details / Specials

  • Facade surface 500 m²
  • Cladding material is Tichelar Ceramic
  • Bespoke subframe using the RJ Facades EVT system.
  • Ceramic panels hung to create open joint design with horizontal rails and panel brackets with FZP undercut anchors
  • Building Substructure concrete and steel with primary concrete fixings RGM A4 studs and FIS V360 resin
