Most standard façade subframe systems are typically designed using vertical rails in a T & L geometry.

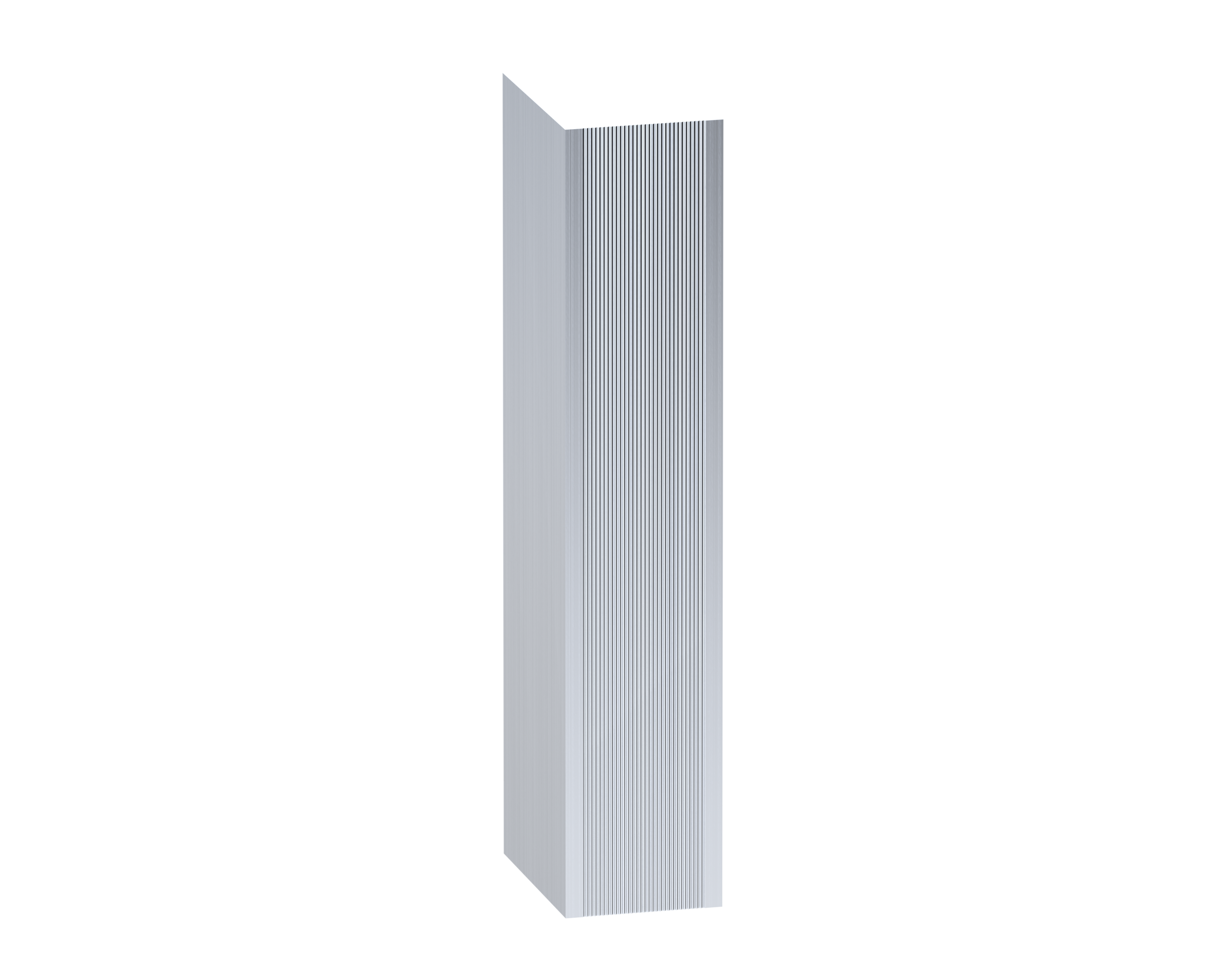

For intermediate supports, the 60x40 standard L-profile provides the correct dimensions for most façade types, relating to surface area in contact with the panel,
L-profiles can also be used at panel joint locations where the 40mm dimension is enough to support the panels.
for non-standard or custom L-profiles please contact RJ facades technical department.
Depending on the system type and application additional horizontal profiles might be added to T and L geometry, on order to fulfil the project requirements.
For scenarios where the façade has an expressed joint, L-profiles can be powder coated and anodised.
RJ Facades standard soffit designs up to 400mm using L and T profiles to support most soffit materials
Bracket and profile configuration is specified by RJ Facades technical department. To submit your project specifics please go to Facade Designer.
The UL Certification covers the full range of brackets and accessory components. The aluminium and stainless EVT brackets and components are manufactured and fabricated in Europe and the UK at UL audited manufacturing sites.
A detailed overview of the certified products
Technical specification of the products
An initial assessment of the certified company's factory production control systems.
A review of the products documentation to help demonstrate compliance with the applicable requirements of the UL Scheme.
An assessment of the certified products contribution to any key requirement of the building regulations.
An overview of the certified companies product installation requirements and procedures.
An overview of all supporting test documentation used for the product evaluation.
Ongoing surveillance of the certified company's factory production control system and procedures.
The conditions under which this product certification is valid.
Bravo-H Support System for aluminium tongue and groove cassette panels.
Vario-F Support System to support face fixed façade materials
Forte Support System for supporting stone facades up to 60kg
Forte-L Support System for supporting stone facades up to 40kg
Forte-P Support System for supporting heavy façade materials up to 90kg
Brickslip Support System for supporting brick facades.
Kerf Support System for supporting ornate shaped stone panels.
Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading
The system benefits from using a standard helping hand system, which is interchangeable with other RJ Facades helping hand systems based on the project requirements.
Bracket configuration is specified by RJ Facades technical department. To submit your project specifics please go to Facade Designer.
RJ Facades offer one of the UK's largest range of Helping Hand brackets which have been designed to help achieve the the required U-Value while helping to support the facade system going back to the backing wall.
Project thermal calculations to confirm insulation thickness available on a project by project basis.
RJ Facades design issued by the our technical department can be covered by Product and design insurance if required.
System components available in AutoCAD and PDF downloads.
RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.
All rails available to specific RAL colours in Qualicoat on an order to order basis.
