Aluminium Profiles

Box Sections

Vertical application
Floor to floor
Heavy materials

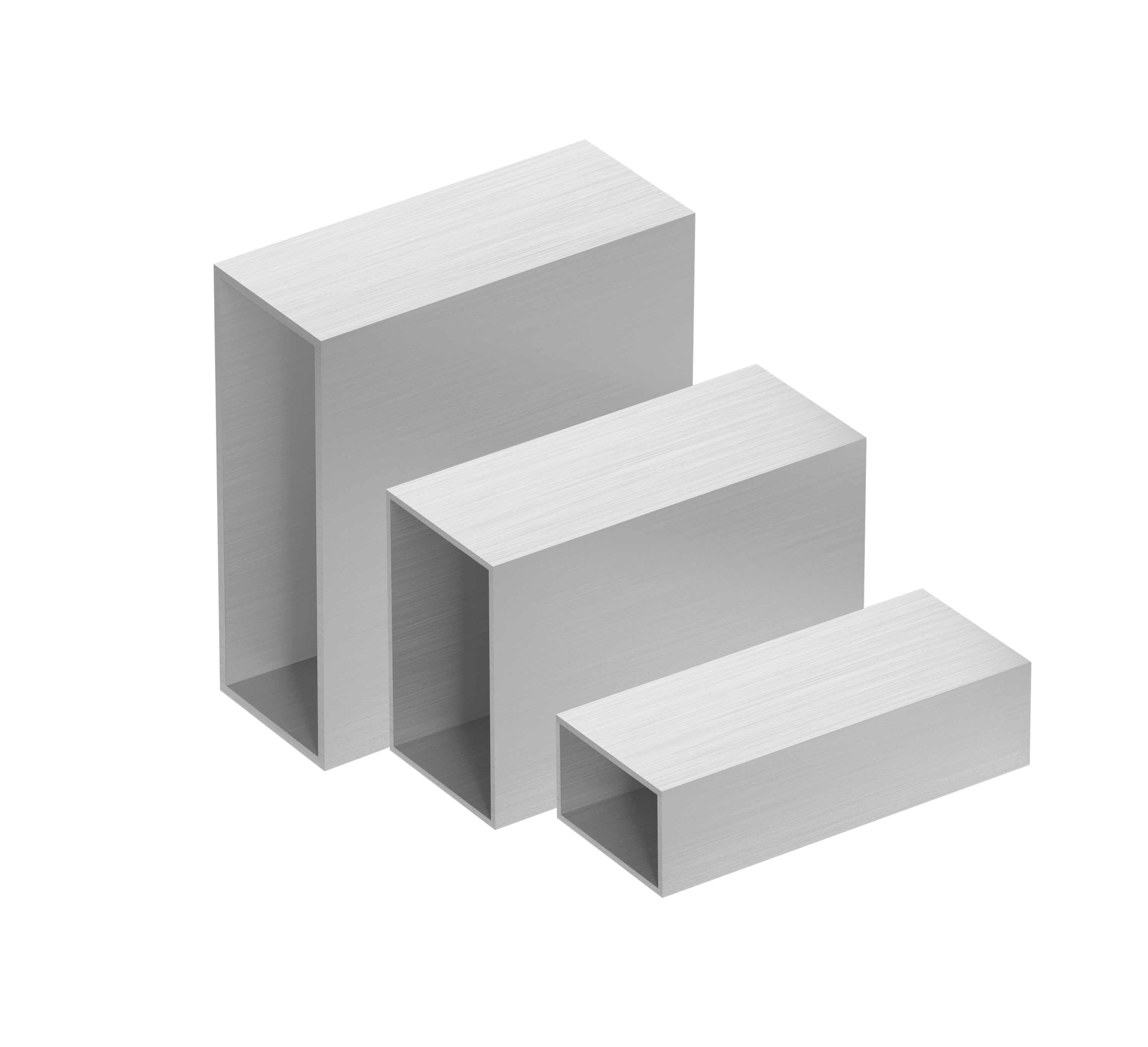

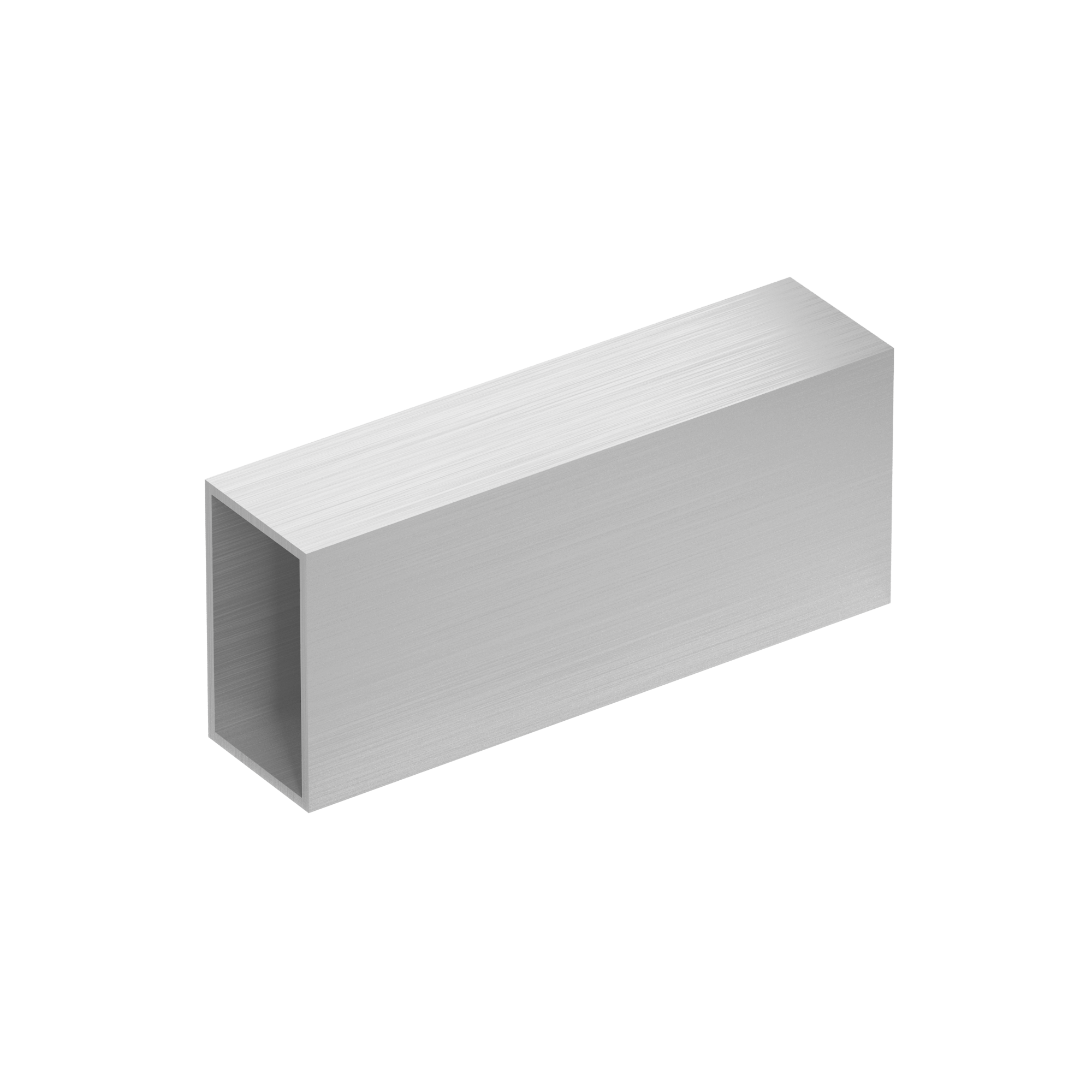

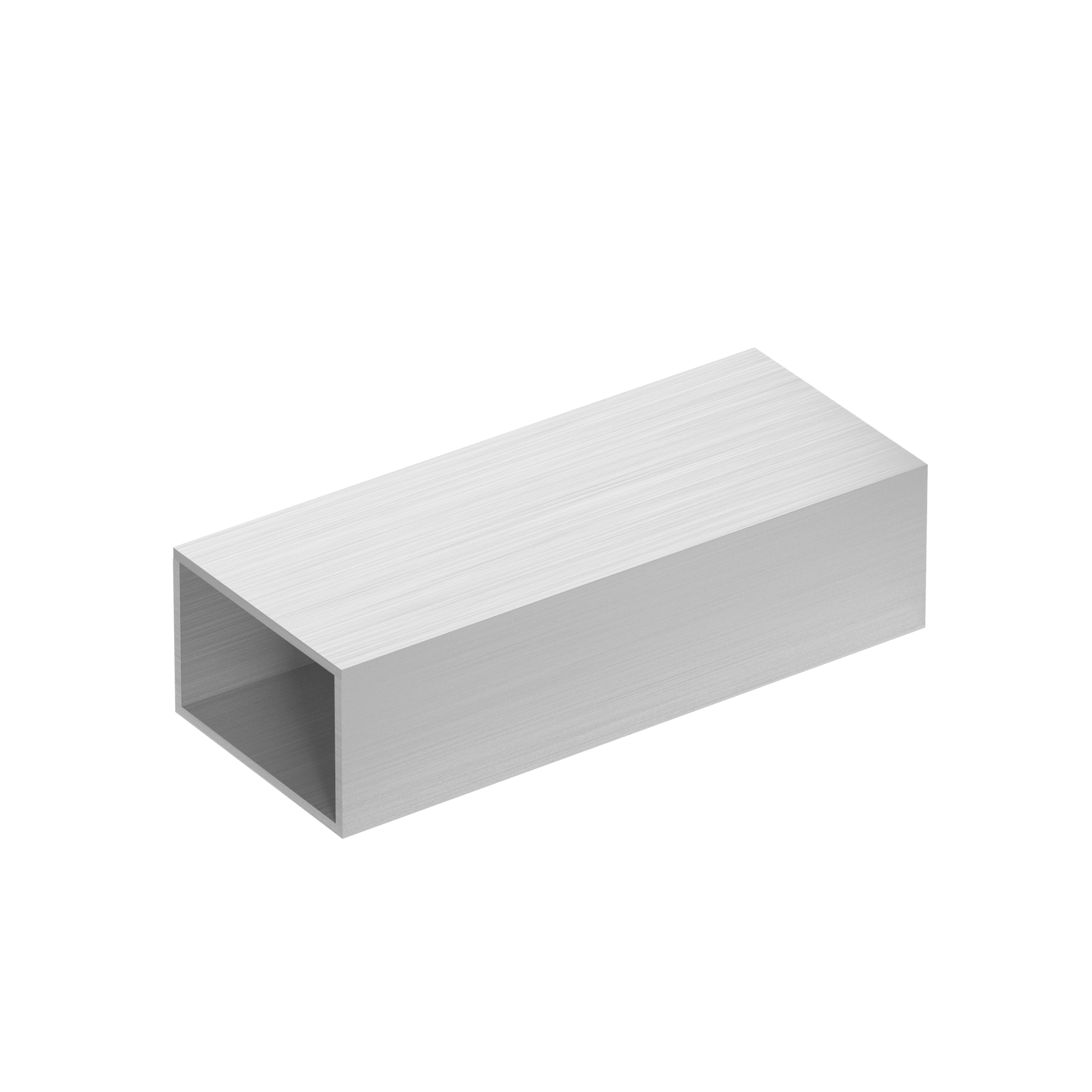

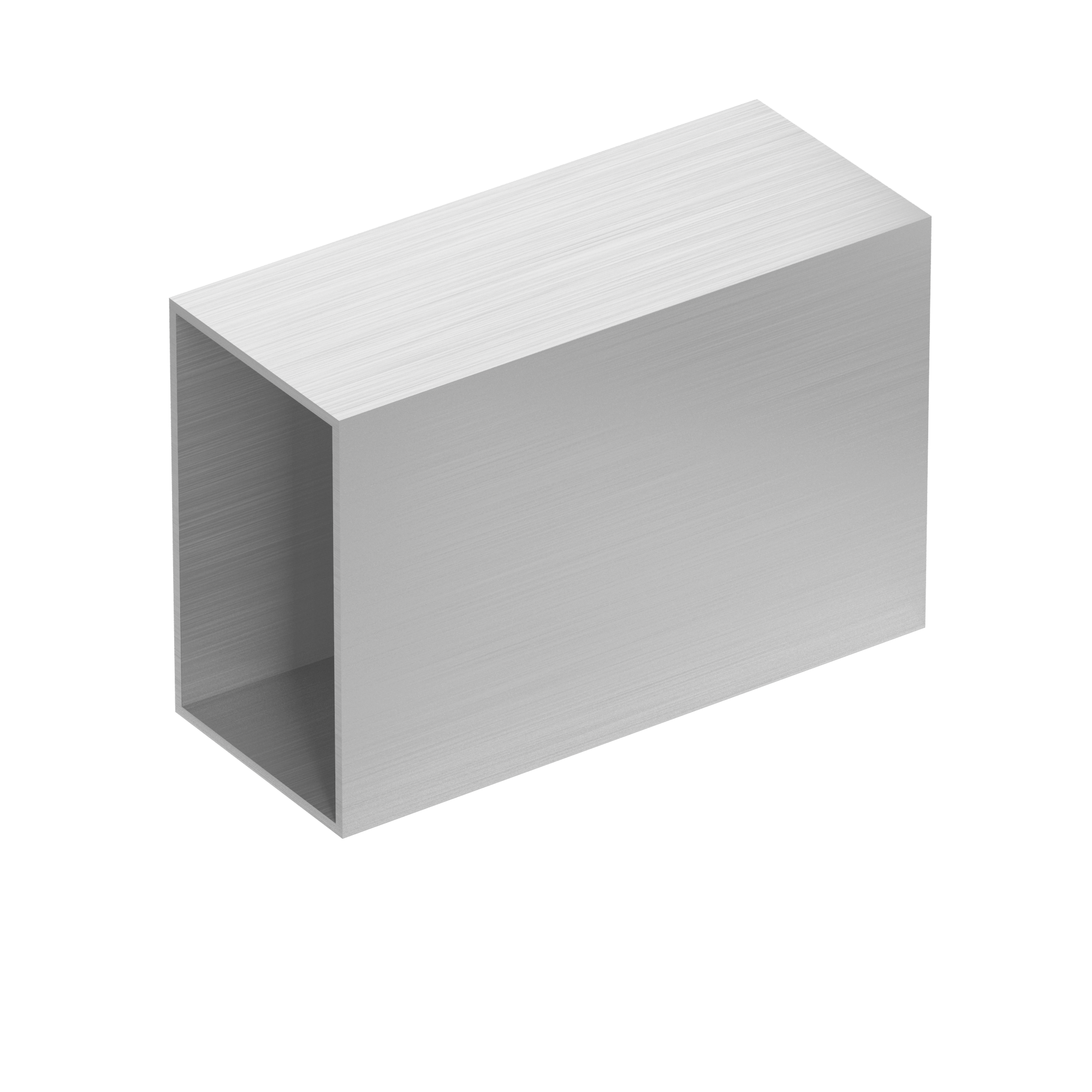

Box Sections are engineered to support large cavities and where there is a need to span between floors. The profiles are also used if building substrate is variable or where a subframe needs to carry heavy weight facade materials - including natural stones with a typical thickness greater than 40mm and glass. All sections are 50mm wide face, the depth varies from 25mm to 180mm and they are designed for U shaped brackets.

Enquire Now
  • Downloads
  • Approvals
  • Typical Facade Systems
  • Technical Characteristics
  • Approvals


    J Facades systems are designed and manufactured to Eurocode 9. UK accreditation approvals through the new Winmark Approval, by Wintech are confirmation of Eurocode design and manufacture processes.


    UK accreditation

    Winmark Approval


    European accreditation

    MPA National Technical Test Certification: Aluminium profile sections in substructure systems and connections

    Certification Conformity Structural Components and systems for structures to EXV2 according to EN 1090-2, for load-bearing structures in all types of buildings

    Passivhaus Certification

    CE-Certification & QM-cert ISO 9001

    Environmental management standard ISO 14001

  • Typical Façade Systems


    Stone 40-50mm ‘Secret-Fix’ systemONE

  • Technical Characteristics


    Typical bracket configuration uses the Fixed Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is used typically on all other positions on the vertical rail to absorb the project wind loading. Bracket configuration is specified by RJ Facades technical department. To submit your project specifics please go to Project Builder.

    RJ Facades design issued by the our RJ Facades technical department can be covered by Product and design insurance if required.

    System components available for AutoCAD downloads.

    RJ Facades offer a standard, available ex stock UK, range that covers most design requirements.

    All rails available to specific RAL colours in Qualicoat on an order to order basis.

    Material Specification


    Manufactured from extruded aluminium alloys conforming to EN 573-3 (material) and EN 755 production standards.
