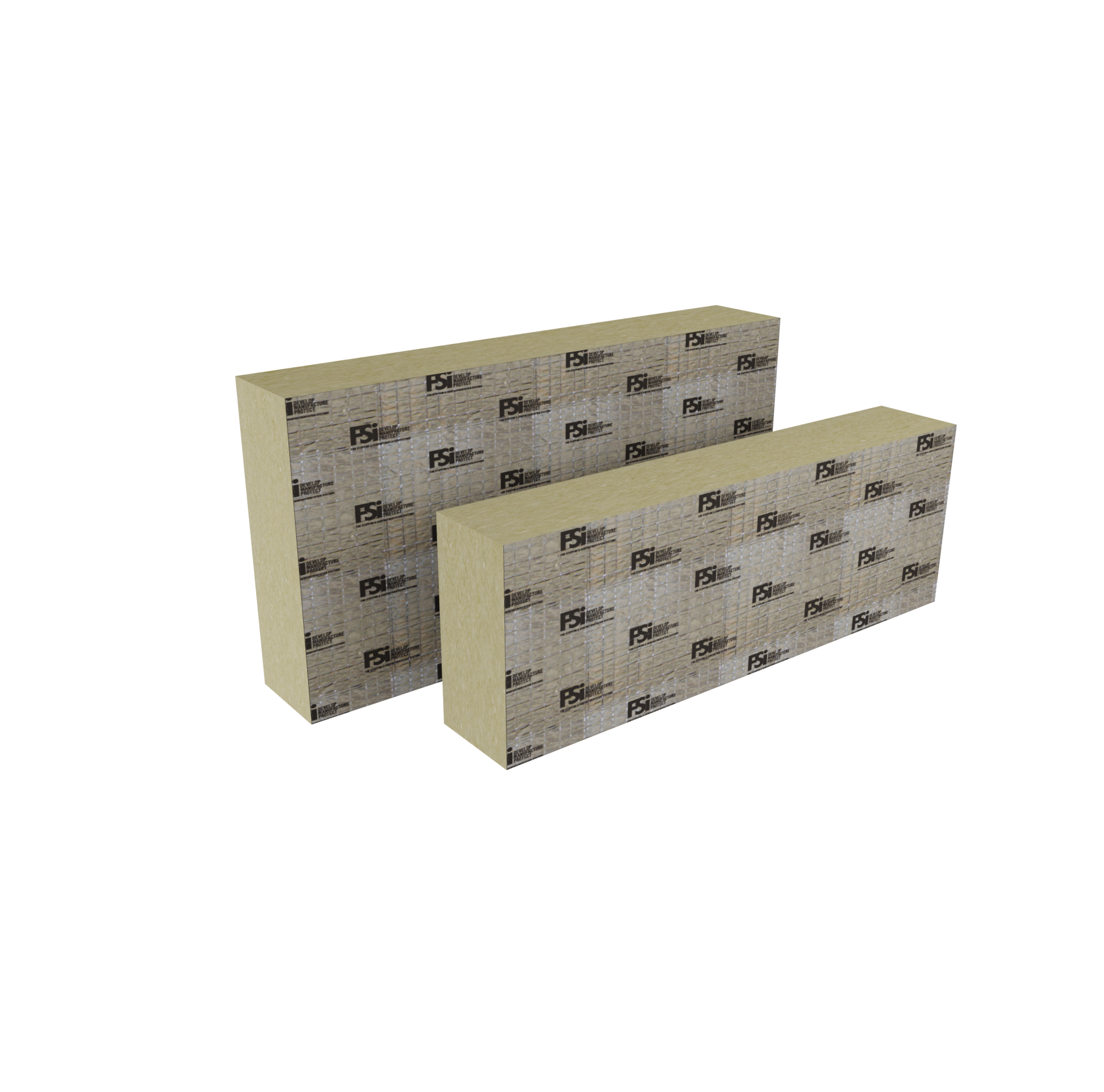

PARAFLAM® SEB Vertical Cavity Barrier

Paraflam® is a perimeter fire stop designed for curtain walling and cavity barrier external rainscreen facades. Paraflam® is a non-combustible stone wool based product with a foil facing which prevents fibre migration and provides an excellent seal. It is designed to reinstate the fire resistance of a compartment, as well as offering good thermal and acoustic performance



Intended areas of use
• Masonry construction
• Curtain wall and perimeter facades
• External rainscreen facades
• Large horizontal and vertical joints in walls and floors
• Fire stop for internal apertures





Enquire Now
  • Downloads
  • Approvals
  • Typical Façade Types
  • Technical Characteristics
  • Brochures and Catalogues

  • Advantages



    • Dry fit (no cure time required)
    • Easy friction fit system
    • High speed installation
    • Non-combustible
    • Lightweight
    • Testing in voids up to 590mm
    • Provides smoke seal
    • Minimal waste
    • Excellent acoustic performance

  • Building Materials



    Substrates
    Block, masonry, aerated concrete and concrete must be within a density range of 450 to 2300kg/m³. CP
    (cement particle) board and concrete cladding must be within a density range of 450 to 2300kg/m³. Timber
    must have a minimum density of 510kg/m³. All substrates must have at least the same Fire Resistance as is
    required by the fire stopping system.



    Applications



    • Masonry construction
    • Curtain wall and perimeter facades
    • External rainscreen facades
    • Large horizontal and vertical joints in walls and floors
    • Fire stop for internal apertures



  • Fire Resistance Up to 120 minutes
    Reaction to Fire Class A1
    Acoustic Up to 34dB
    Air Permeability 600 Pa 0.4m3/h
    Durability Type Z
    Thermal Conductivity 0.034w/mK
    Cavity Size Up to 590mm
    Movement <7.5%



    Size (WxL) 1200mm x 1000mm (pre-cut lengths available)
    Thickness 75mm, 100mm, 120mm
    Density Nominal 80kg/m³
    Appearance Aluminium Foil
    Weather Resistance Yes
    Storage Conditions To be stored in dry conditions
